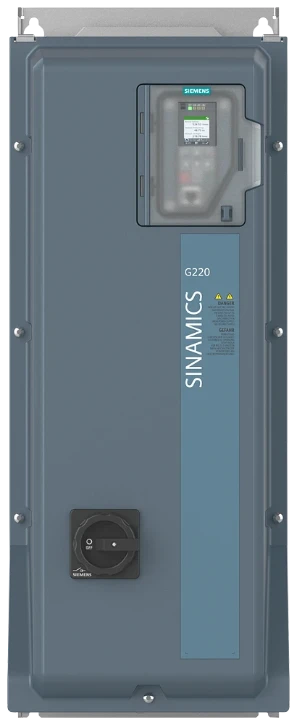

SINAMICS G220, 3AC 200...240V, 15kW/20hp, IP55 / UL 12

Produktbeschreibung

SINAMICS G220 200-240 V 3AC +10/-20% 47-63 Hz power low overload: 15 kW 150% 3 s, 110% 57 s power high overload: 11 kW 200% 3 s, 150% 57 s 650x 270x 283 (HxWxD) frame size: FSD2 degree of protection IP55 / UL type 12 safety SIL3 coating 3C2 with integrated braking chopper SINAMICS G220 frequency converter Innovation in every detail. It is suitable for a wide range of high-performance applications in the process industry such as food & beverages, pharmaceuticals, chemicals, oil & gas and marine infrastructure, as well as general machinery. The SINAMICS G220 is particularly characterized by a digital native drive with an integrated digital twin in Startdrive, which reduces testing effort, shortens time-to-market, and enables virtual commissioning. SINAMICS G220 helps you to reduce selection and commissioning times thanks to the engineering tool-driven ease-of-use concept, the integrated web server, and full integration into TIA Portal Startdrive. Simplest selection and fast, intuitive commissioning are ensured. With this converter, you can increase the availability of your plant and optimize its energy efficiency through system redundancy. It also offers high-performance motor control. Integrated safety functions secure access to drives and expanded integrated safety functions up to SIL 3/PLe protect people, machines and plants. Thanks to Edge and Cloud connectivity, it is IIoT-capable. It offers incredible flexibility regarding hardware and software, and other features such as EMC conformity, ship type approvals, and extra long cable lengths make the SINAMICS G220 the perfect high-performance drive for all industries. The SINAMICS G220 is available with degree of protection IP20 for a 200 - 240 V voltage range and a power range from 0.55 kW to 30 kW. The compact design saves space in the control cabinet. In the first step, the SINAMICS G220 frequency converter is available in six sizes (IP20) and, thanks to the integrated web server, it can be easily commissioned via various clients such as the integrated operator panel SINAMICS SDI (Smart Drive Interface), the door mounting kit or the handheld option SINAMICS SDI Pro 5.5" with multi-drive access, HMI (Human Machine Interface), or any smart device, e.g. tablet. Smartphone, laptop with Wi-Fi technology thanks to the option SINAMICS Smart Adapter. SINAMICS – simply my drive.

Produktspezifikationen
