Allgemeine Information

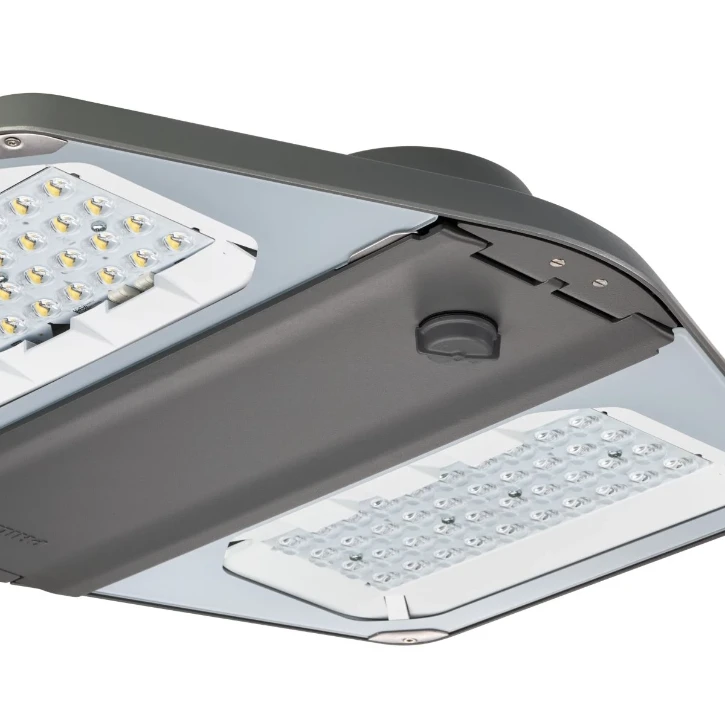

BTP764 LED64-4S/740 DSW1 PSD-SR SRT SRB
BTP764 LED64-4S/740 DSW1 PSD-SR SRT SRB
YESSS-Bestellnummer
3031-9802
Produktcode
8718699450212
EAN-Code
08718699450212
Produktgruppe
Luminaire for streets and places
Marke
SIGNIFY
Serie
DigiStreet Catenary
Typ
Straatverlichtingsarmatuur
Produktbeschreibung
DigiStreet Catenary Road & street light, Gietaluminium, Aluminium, Kettingbeugel, Voedingsunit met DALI-interface, 6400 lm, 38 W, 152 lm/W, 4000 K, (0.382; 0.380) SDCM
Produktspezifikationen
Mounting method
Post top mounting
Lamp type
LED exchangeable
With light source
Ja
Lamp holder
Other
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Aluminium
Material cover
Glass transparent
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Ja
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Zigbee
Nein
Degree of protection (IP)
IP66
Light distributor
Focal lens
Adjustable optics
Nein
Impact strength
IK09
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Remote control
Network control
With radio control
Nein
Constant light output (CLO)
Nein
With light regulation program control
Ja
With connection cable
Nein
Max. system power
38 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Luminaire efficacy
152 lm/W
Power factor
0.97
Width
530 mm
Height/depth
86.5 mm
Length
580 mm
Type of wiring
Ending
Number of poles
5
Conductor cross section
1.5 mm²
Connection type
Screwed terminal
Nominal current
170 - 170 mA
Exchangeable control gear
Ja
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
98 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Type of connection for sensor/communication module
Other
With light sensor
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Max. number of luminaires per miniature circuit breaker B16 (MCB)
31
Max. number of luminaires per miniature circuit breaker C16 (MCB)
10
Operation by Bluetooth
Nein
Dimmable
Ja
Dimming DALI-2
Ja
Containing product according to 2019/2020/EU
Ja
Rated luminous flux according to IEC 62722-2- 1
6400 - 6400 lm
Solar powered
Nein
With integrated PV panel
Nein
Built-in battery
Nein
Suitable for off-grid power system
Nein
Dimming D4i
Ja
Connectable conductor cross section
1.5 - 1.5 mm²
Zhaga-D4i certified
Ja
With movement sensor
Ja
With presence detector
Ja
Movement sensor/presence detector technology
Other
