Allgemeine Information
BDS592 LED60-4S/830 I TT MDW GR
BDS592 LED60-4S/830 I TT MDW GR
YESSS-Bestellnummer
3052-4837
Produktcode
8719514212244
EAN-Code
08719514212244
Produktgruppe
Luminaire for streets and places
Marke
SIGNIFY
Serie
Metronomis LED
Typ
Paaltoparmatuur
Produktbeschreibung

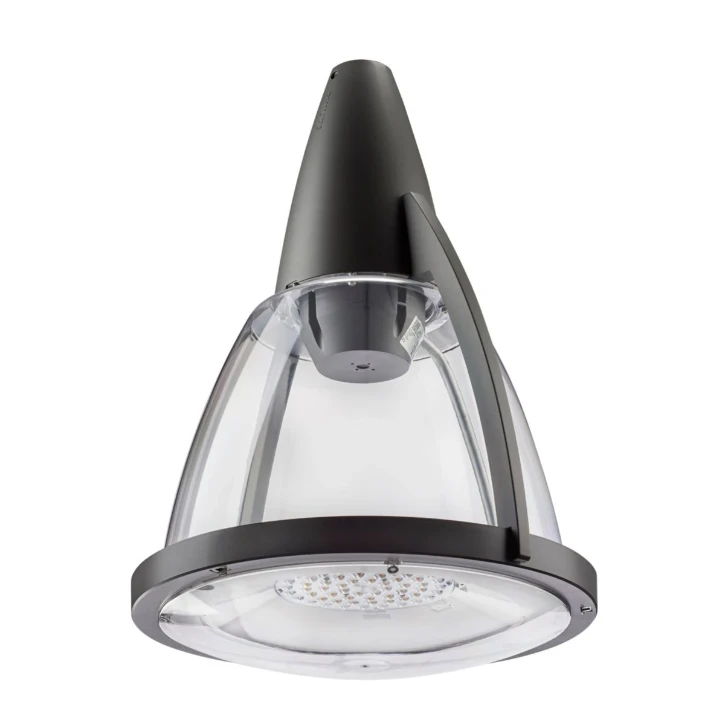

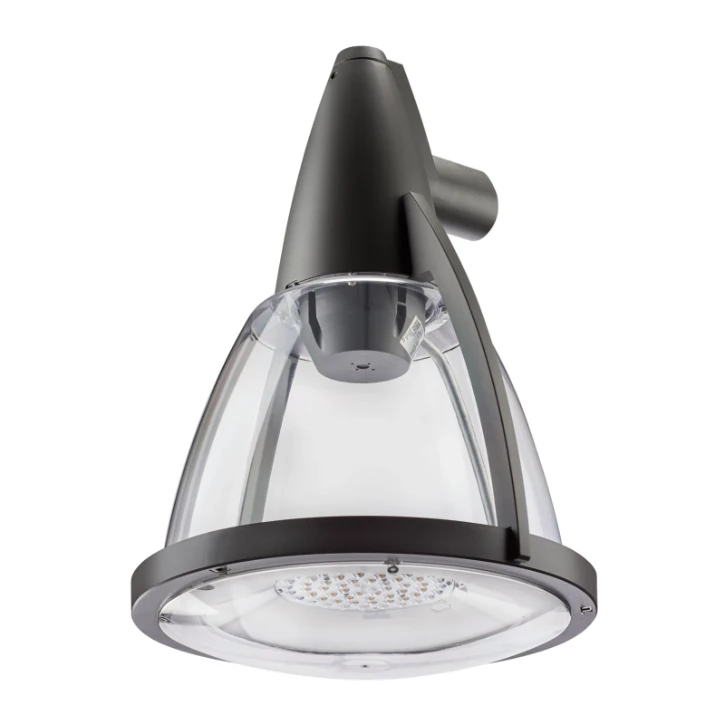

Metronomis 1 LED Urban road & street light, Aluminium, Grijs, Mastopzetstuk voor diameter 60 mm, Voedingsunit (aan/uit), 5160 lm, 45.5 W, 113 lm/W, 3000 K, (0.434, 0.403) SDCM
Produktspezifikationen
Mounting method
Suspended
Lamp type
LED exchangeable
With light source
Ja
Lamp holder
Other
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Grey
Material cover
Plastic, transparent
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Zigbee
Nein
Degree of protection (IP)
IP65
Light distributor
Other
Adjustable optics
Nein
Suitable for spigot size
60 - 60 mm
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Remote control
None
With radio control
Nein
Constant light output (CLO)
Nein
With light regulation program control
Nein
With connection cable
Nein
Max. system power
45.5 W
Colour of light
White
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Luminaire efficacy
113 lm/W
Power factor
0.98

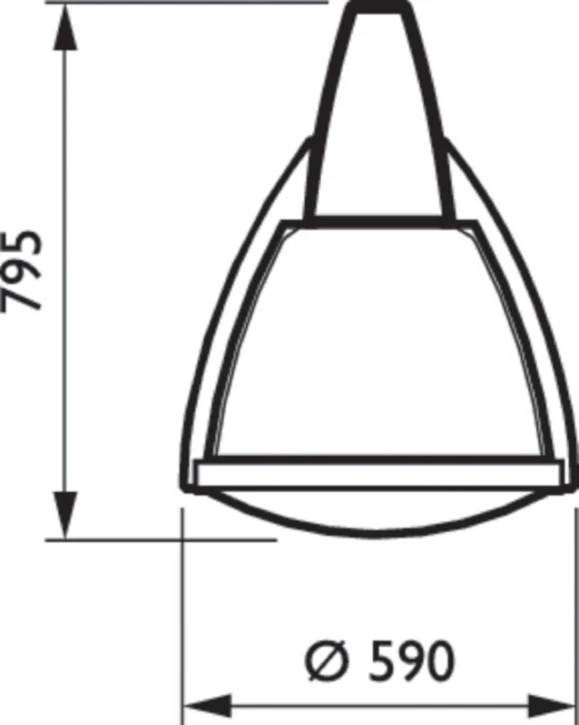

Width
590 mm
Height/depth
795 mm
Length
795 mm
Diameter
590 mm
Type of wiring
Ending
Number of poles
1
Conductor cross section
1.5 mm²
Connection type
Other
Nominal current
201 - 201 mA
Exchangeable control gear
Ja
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
97 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Type of connection for sensor/communication module
Other
With light sensor
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Max. number of luminaires per miniature circuit breaker B16 (MCB)
10
Max. number of luminaires per miniature circuit breaker C16 (MCB)
10
Operation by Bluetooth
Nein
Dimmable
Nein
Dimming DALI-2
Ja
Containing product according to 2019/2020/EU
Ja
Rated luminous flux according to IEC 62722-2- 1
5160 - 5160 lm
Solar powered
Nein
With integrated PV panel
Nein
Built-in battery
Nein
Suitable for off-grid power system
Nein
Dimming D4i
Nein
Connectable conductor cross section
1.5 - 1.5 mm²
Zhaga-D4i certified
Nein
With movement sensor
Nein
With presence detector
Nein
