BCB500 LED56-4S/740 S DGR
- 3031-9834
- |
- 8718699481186
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
BCB500 LED56-4S/740 S DGR
BCB500 LED56-4S/740 S DGR
YESSS-Bestellnummer
3031-9834
Produktcode
8718699481186
EAN-Code
08718699481186
Produktgruppe
Luminaire bollard
Marke
SIGNIFY
Serie
OptiSpace
Typ
Lichtzuil
Produktbeschreibung

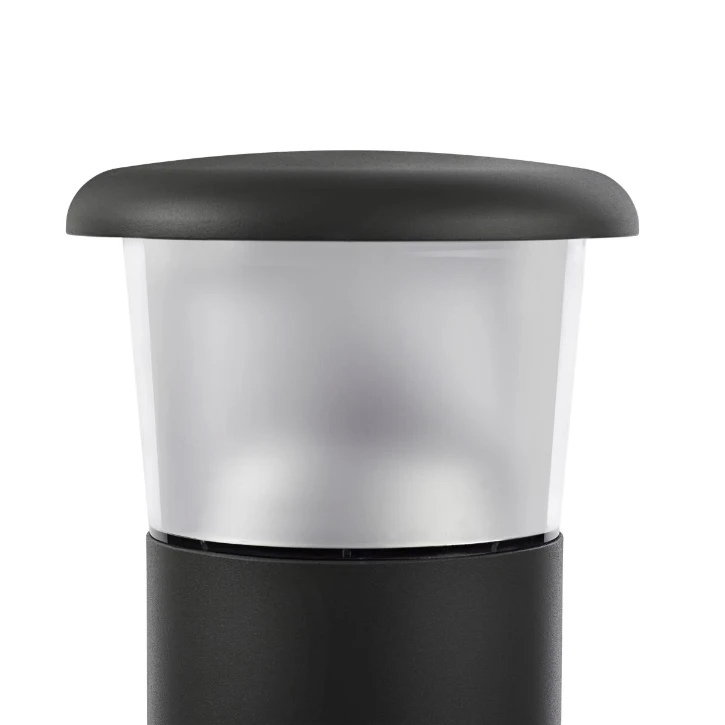

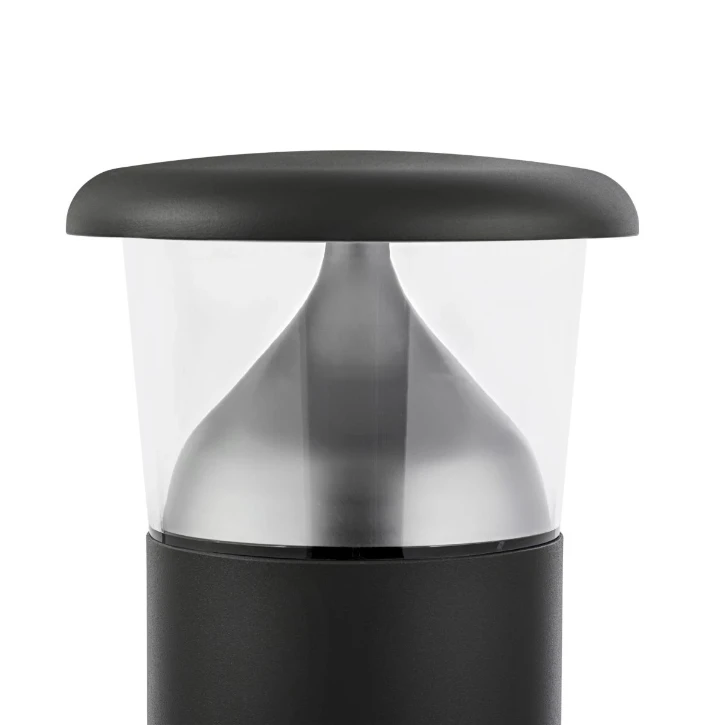

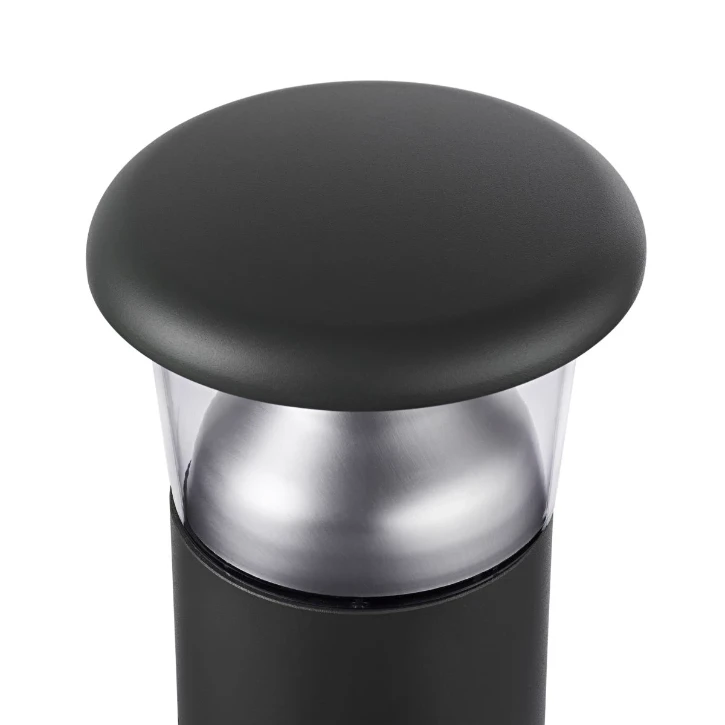

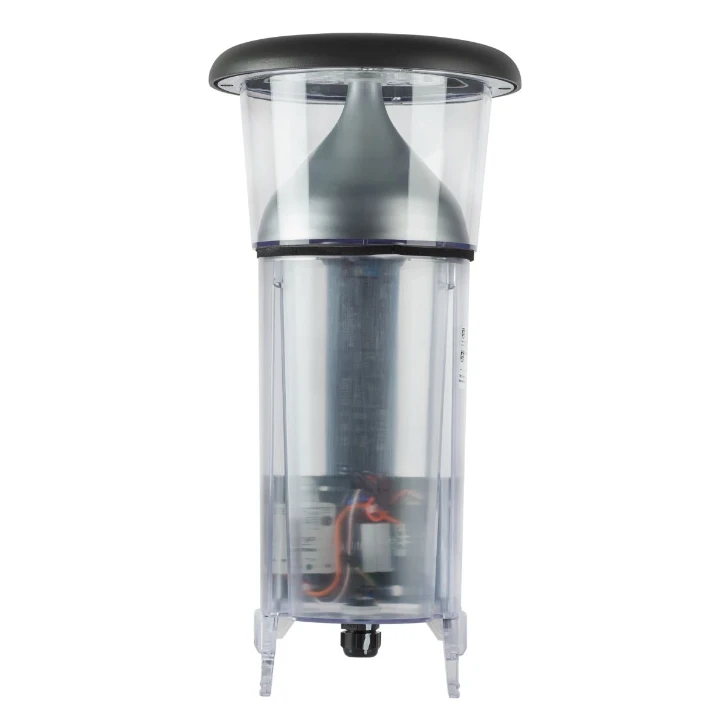

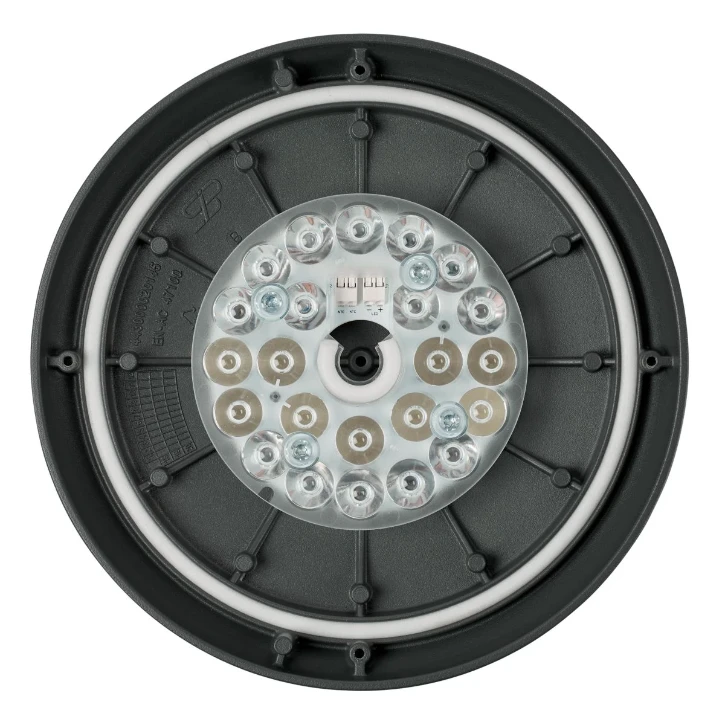

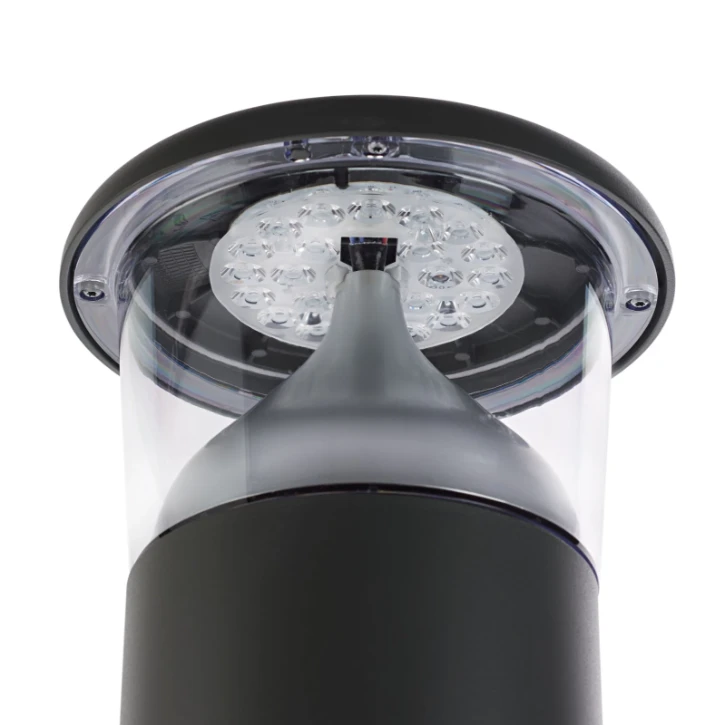

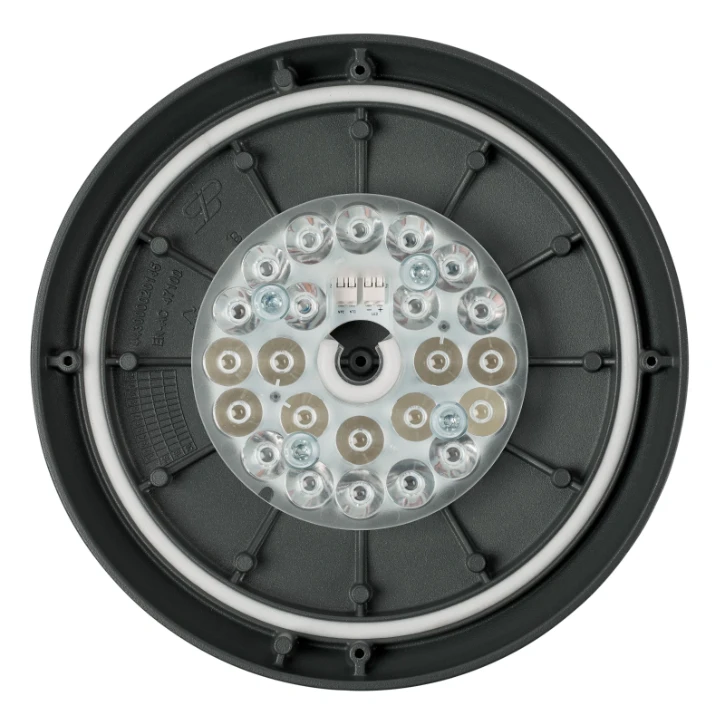

OptiSpace Bollard, H848 mm, Gietaluminium, Zwart, Universeel voor diameter 42-60 mm verstelbaar, Voedingsunit (aan/uit), 4900 lm, 37.2 W, 173 lm/W, 4000 K, (0,3818; 0,3796) SDCM
Produktspezifikationen
Type of luminaire
Bollard luminaire
With base plate
Ja
With light sensor
Nein
With movement sensor
Nein
Lamp type
LED exchangeable
With light source
Ja
Lamp holder
Other

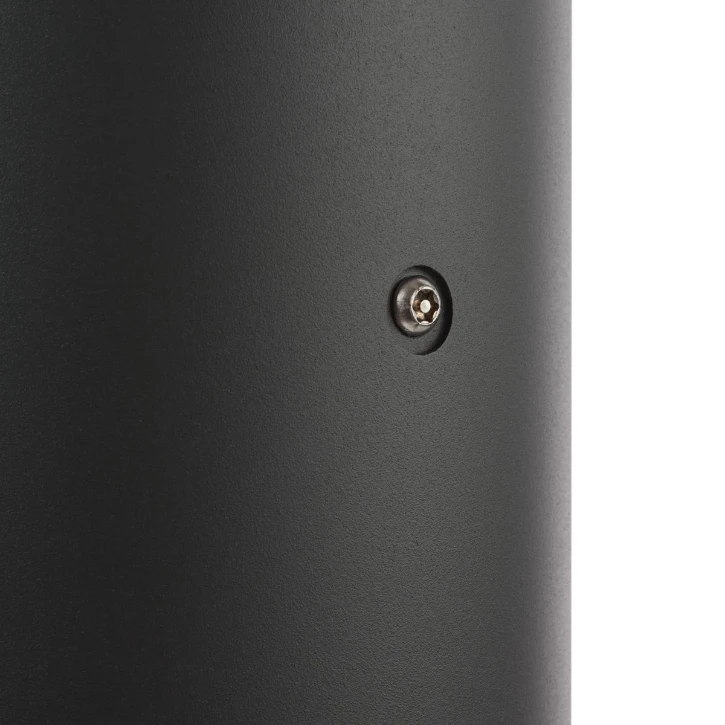

Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black

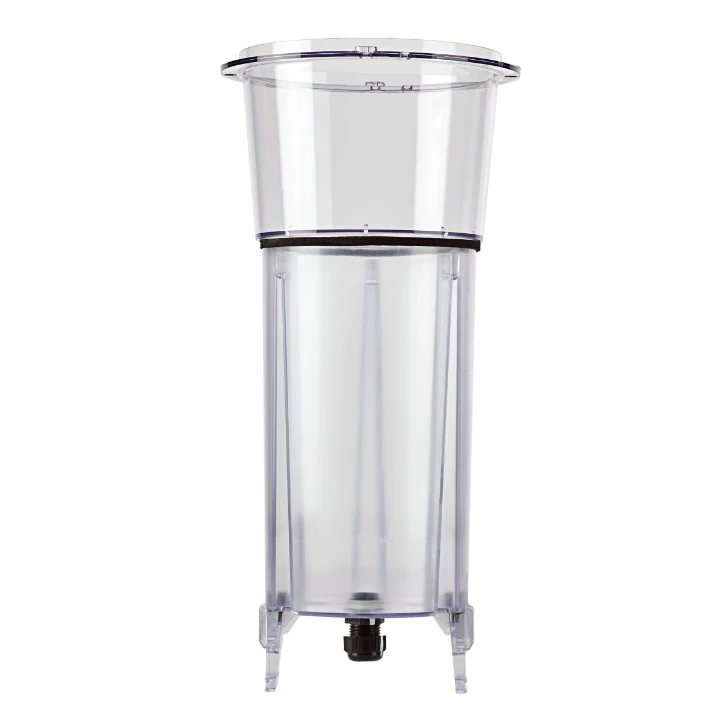

Material cover
Plastic, transparent
Voltage type
AC
Nominal voltage
220 - 240 V

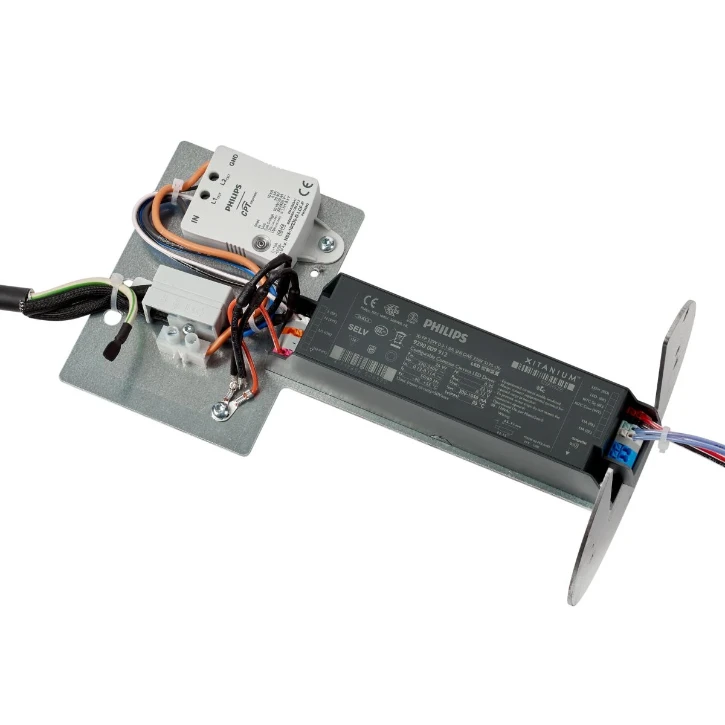

Type of control gear
LED operating device current-controlled
With control gear
Ja
Light distributor
Refractor lens
Degree of protection (IP)
IP66
Impact strength
IK10
Protection class according to IEC 61140
I
Max. system power
37.2 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Power factor
0.98
Width
270 mm
Height/depth
848 mm
Length
270 mm
Diameter
168 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
2.5 mm²
Connection type
Crimping
Housing material quality
Other
Exchangeable control gear
Ja
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
90 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
Nein

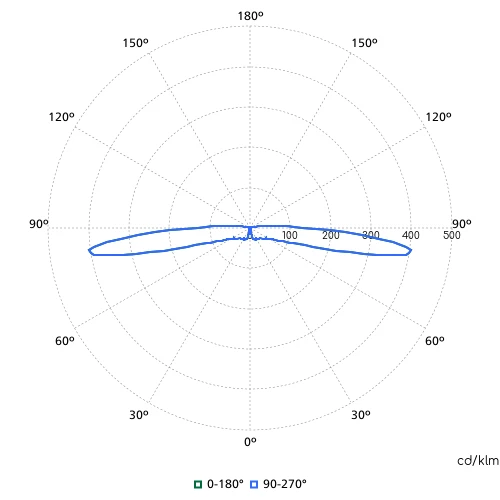

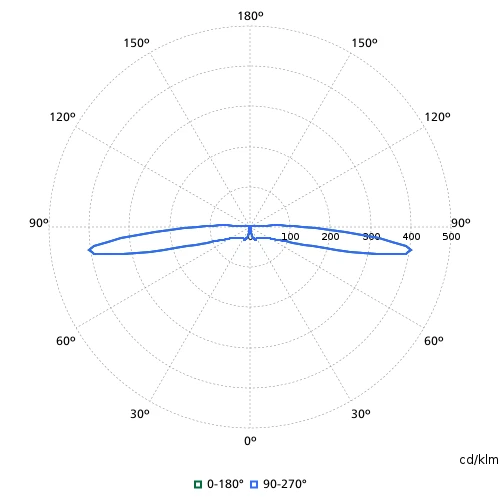

Light distribution
Symmetric
Light outlet
Direct/indirect
Luminaire efficacy
173 lm/W
Beam angle
> 80° - Extreme wide beam
Flickering value Pst LM
0.41
Stroboscope effect value SVM
0.07
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
16
Max. number of luminaires per miniature circuit breaker C16 (MCB)
20
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Nominal current
165 - 165 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Nein
Movement sensor/presence detector technology
Other
Containing product according to 2019/2020/EU
Ja
Rated luminous flux according to IEC 62722-2- 1
4900 - 4900 lm
Connectable conductor cross section
2.5 - 2.5 mm²
Type of power supply
Mains power supply
