BDS100 LED43/740 I DW50 DGR D9 C1K
- 3031-9813
- |
- 8718699450434
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
BDS100 LED43/740 I DW50 DGR D9 C1K
BDS100 LED43/740 I DW50 DGR D9 C1K
YESSS-Bestellnummer
3031-9813
Produktcode
8718699450434
EAN-Code
08718699450434
Produktgruppe
Luminaire for streets and places
Marke
SIGNIFY
Serie
UrbanStar BDS100
Typ
Paaltoparmatuur
Produktbeschreibung
UrbanStar BDS100 Urban road & street light, Polycarbonaat, Grijs, Mastmontagebeugel, diameter 76 mm, Voedingsunit met DALI-interface, 3741 lm, 26.5 W, 141 lm/W, 4000 K, (0.380, 0.390) SDCM
Produktspezifikationen
Mounting method
Post top mounting
Lamp type
LED exchangeable
With light source
Ja
Lamp holder
Other
Housing material
Plastic
Surface protection
Powder coating
Housing colour
Grey
Material cover
Plastic, structured
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Ja
Dimming DMX
Nein
Dimming DSI
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Zigbee
Nein
Degree of protection (IP)
IP66
Light distributor
Other
Adjustable optics
Nein
Suitable for spigot size
76 - 76 mm
Impact strength
IK06
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Remote control
Network control
With radio control
Nein
Constant light output (CLO)
Nein
With light regulation program control
Ja
With connection cable
Ja
Cable length
1 m
Max. system power
26.5 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Luminaire efficacy
141 lm/W
Power factor
0.97

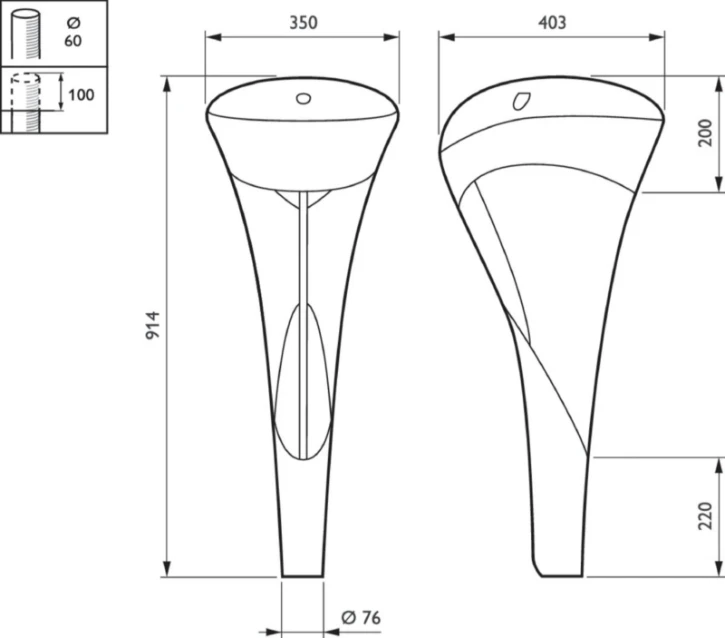

Width
350 mm
Height/depth
914 mm
Length
403 mm
Diameter
76 mm
Type of wiring
Ending
Number of poles
1
Conductor cross section
1.5 mm²
Connection type
Other
Nominal current
118 - 118 mA
Exchangeable control gear
Ja
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
97 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Type of connection for sensor/communication module
Other
With light sensor
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Max. number of luminaires per miniature circuit breaker B16 (MCB)
26
Max. number of luminaires per miniature circuit breaker C16 (MCB)
26
Operation by Bluetooth
Nein
Dimmable
Ja
Dimming DALI-2
Nein
Containing product according to 2019/2020/EU
Ja
Rated luminous flux according to IEC 62722-2- 1
3741 - 3741 lm
Solar powered
Nein
With integrated PV panel
Nein
Built-in battery
Nein
Suitable for off-grid power system
Nein
Dimming D4i
Nein
Connectable conductor cross section
1.5 - 1.5 mm²
Zhaga-D4i certified
Nein
With movement sensor
Nein
With presence detector
Nein
