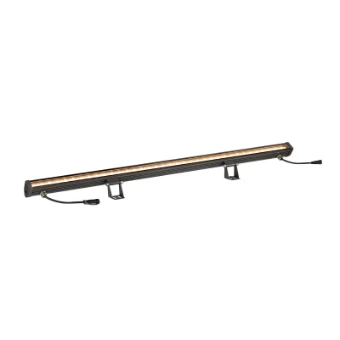

GALEN 120 SP LED PROFIL Outdoor Single Colour CCT switch

  • 3051-2021
  • |
  • 1003448
1 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

GALEN 120 SP LED PROFIL Outdoor Single Colour CCT switch GALEN 120 SP LED PROFIL Outdoor Single Colour CCT switch 3000/4000K IP
YESSS-Bestellnummer
3051-2021
Produktcode
1003448
EAN-Code
04024163236058
Produktgruppe
Ceiling-/wall luminaire
Marke
SLV
Serie
GALEN
Typ
GALEN 120 SP anthracite CCT

Produktbeschreibung

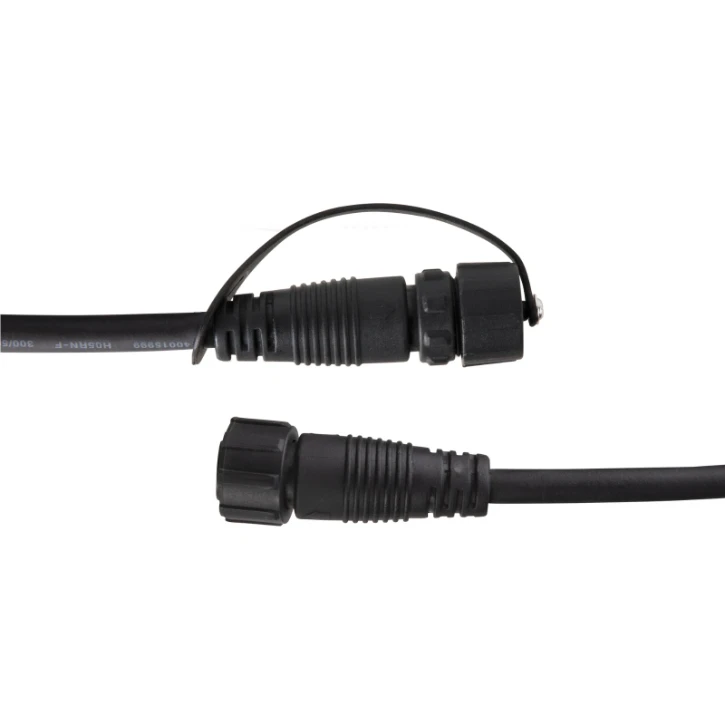

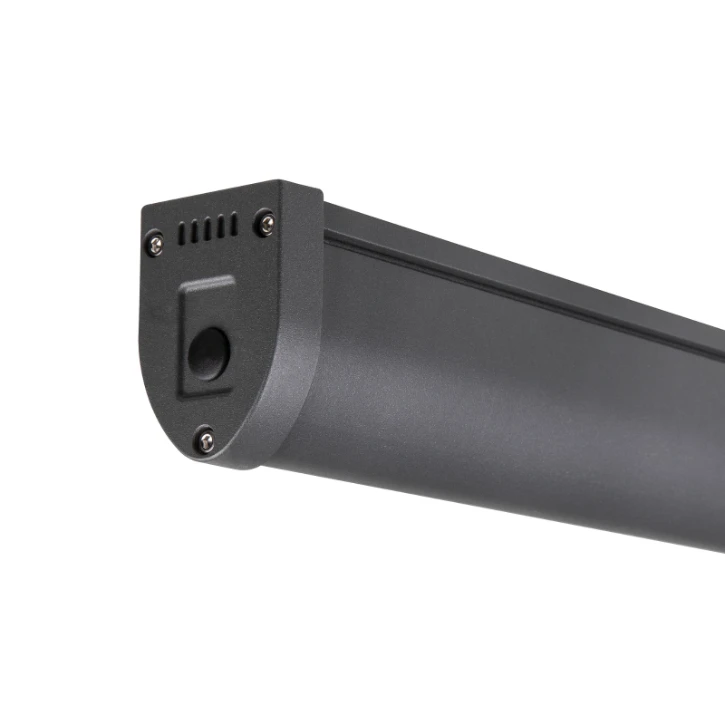

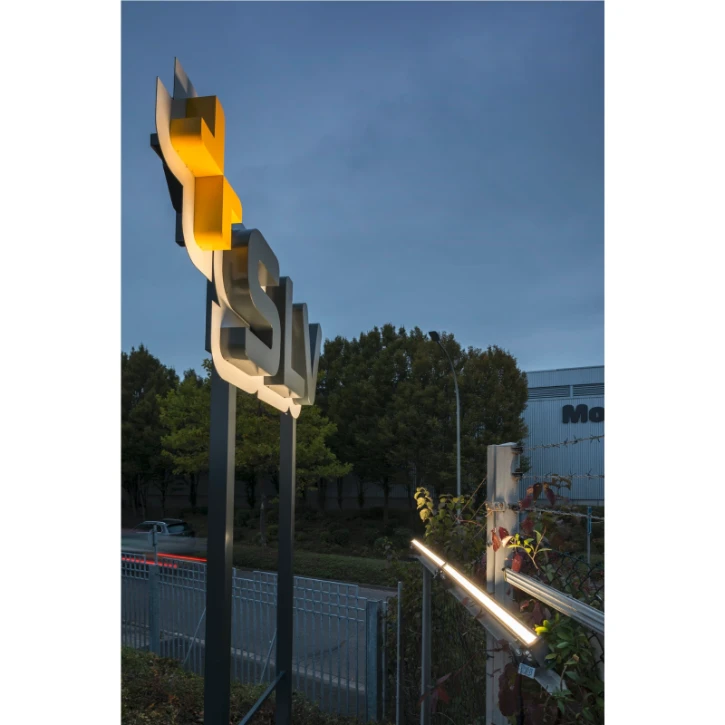

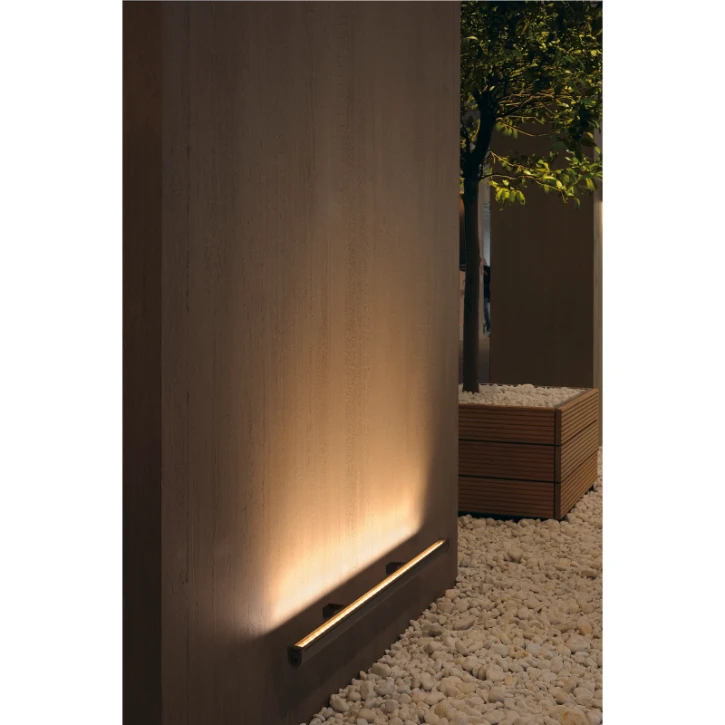

Dankzij de geïntegreerde montagehouder en de spatwaterdichte aansluit- en verbindingskabel is het GALEN LED-profiel snel en eenvoudig aan de wand, op het vloer of aan het plafond te installeren. De favoriete toepassing is de verlichting van displays en borden. Daarbij zorgt de praktische CCT-switch voor extra flexibiliteit, omdat de lichtkleur via een schakelaar op de buitenzijde kan worden ingesteld tussen 3000K (warmwit) en 4000K (neutraalwit). Robuust geproduceerd en voorzien van sterke leds, daarmee is de GALEN ideaal als het gaat om een effectvolle of functionele verlichting in de buitenomgeving van shops, hotels, gastronomie of in bedrijfsmatige gebouwen.

Produktspezifikationen

Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Ja
Suitable for built-in mounting
Nein
Suitable for surface mounting
Ja
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Nein
Lamp type
LED not exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Aluminium
Housing colour
Anthracite
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Not required
With control gear
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Other
Light distribution
Symmetric
Rated lifetime L70/B50 at 25 °C
54000 h
Impact strength
IK03
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
With air slots
Nein
Suitable for lamp power
34 - 34 W
Max. system power
34 W
Colour of light
White
Colour temperature
3000 - 4000 K
Colour rendering index CRI
80-89

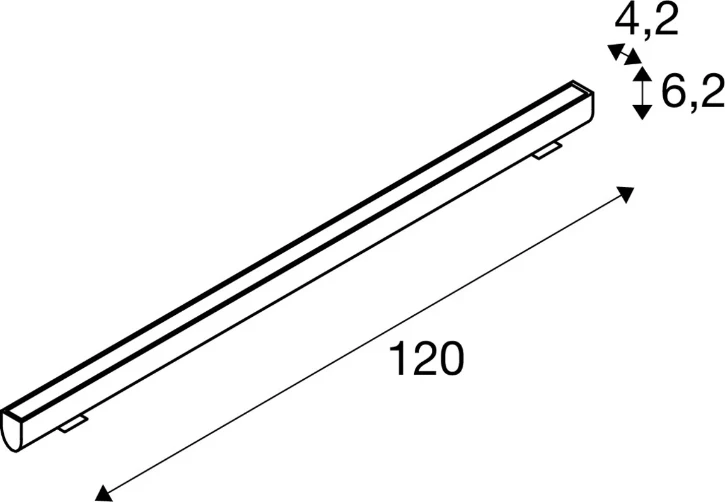

Width
62 mm
Height/depth
113 mm
Length
1200 mm
Type of wiring
Suitable for loop-through wiring
Surface protection housing
Lacquered
Nominal current
900 - 900 mA
Exchangeable control gear
Nein
Dimming DALI-2
Nein
Max. number of luminaires per miniature circuit breaker B16 (MCB)
10
Constant light output (CLO)
Nein
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Compatible with Casambi
Nein
Dimmable
Nein
Luminaire efficacy
88.24 - 88.24 lm/W
Rated luminous flux according to IEC 62722-2- 1
3000 - 3000 lm
With presence detector
Nein
Containing product according to 2019/2020/EU
Ja
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Emergency power supply system
None
Suitable for clamp-mounting
Nein
With mounting material
Ja
With switch
Nein
Website des Herstellers.

Empfohlene produkte

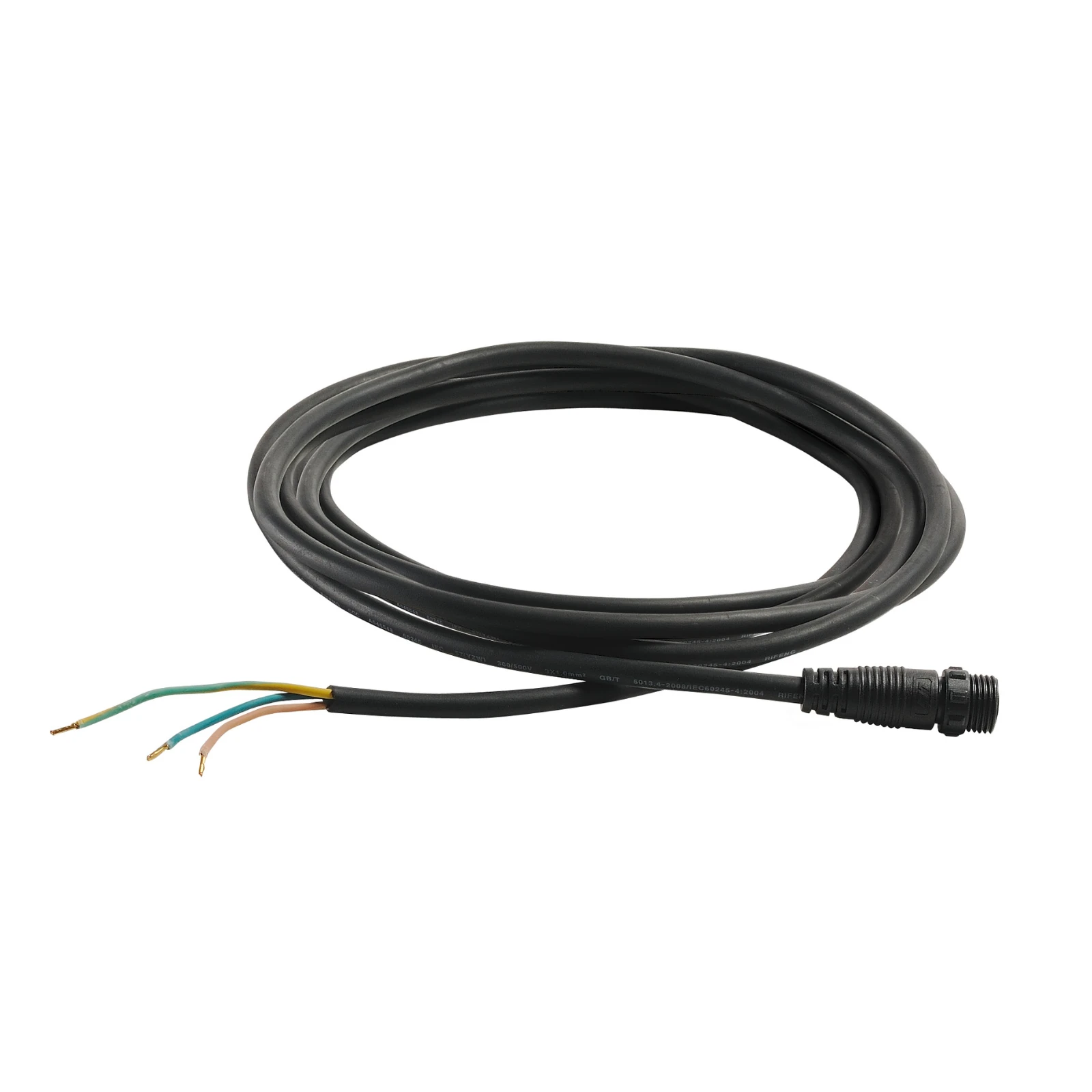

Electrical accessories/spare parts for luminaires SLV GALEN

5 m voedingskabel voor GALEN LED, zwart

€ 22,40 /

€ 28,00 UVP

0 | 3003-2959

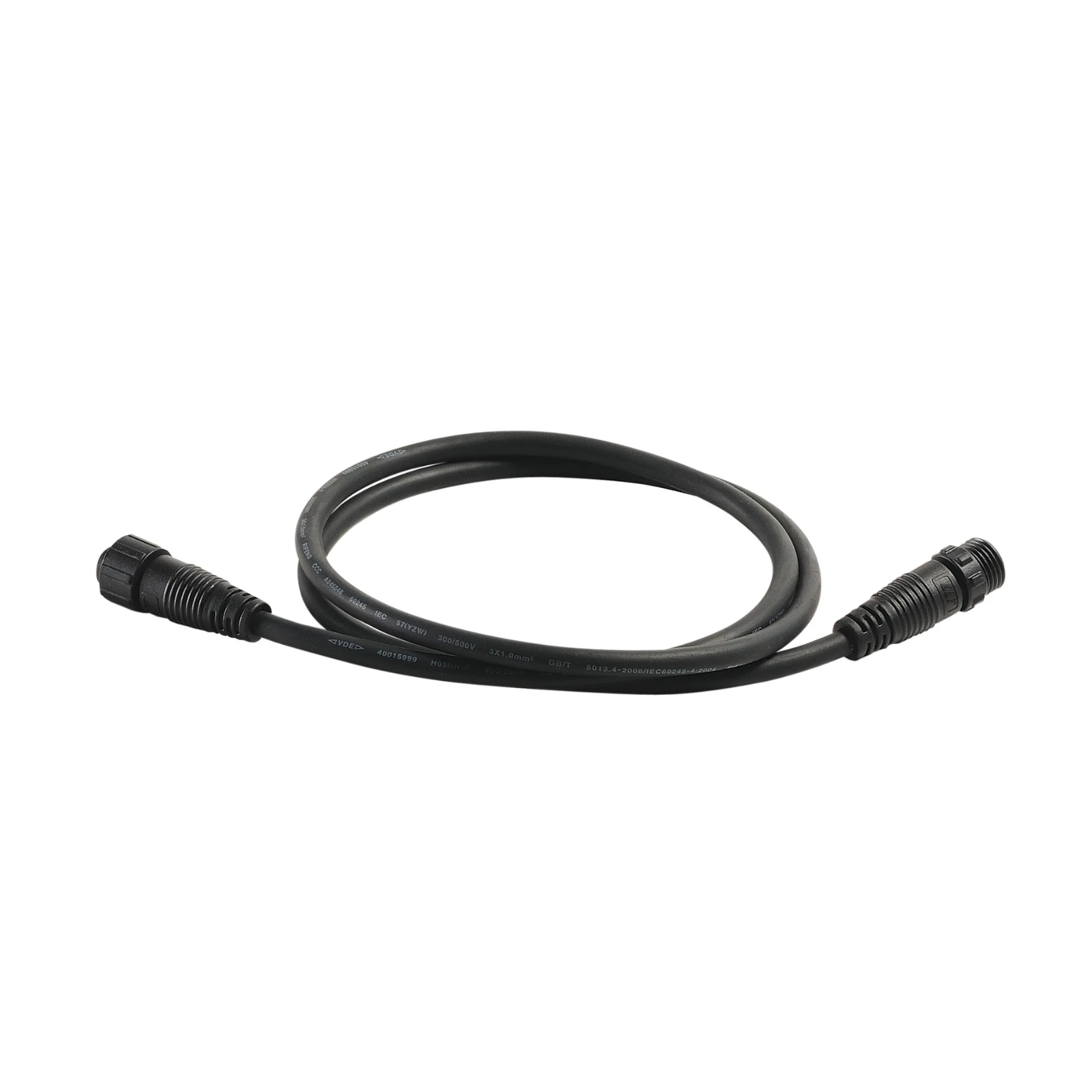

Electrical accessories/spare parts for luminaires SLV GALEN

Verbindingskabel voor GALEN LED, 1 m, zwart.

€ 15,20 /

€ 19,00 UVP

0 | 3003-2960

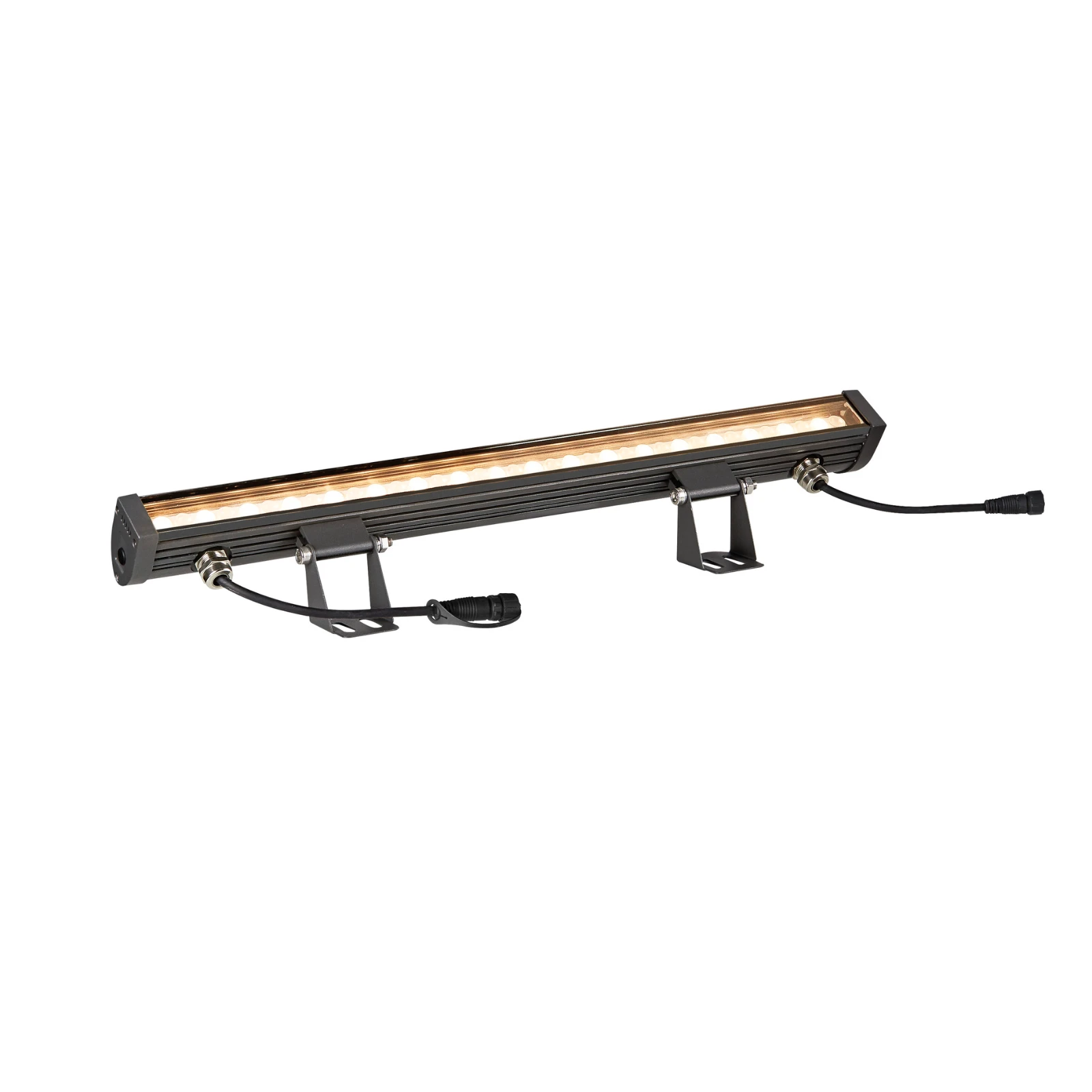

Ceiling-/wall luminaire SLV GALEN
