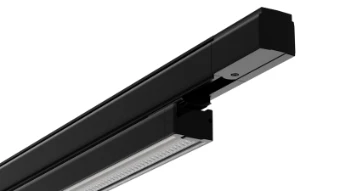

LED-Modul Sylvania Pixo Line 90D

Zur Auswahl hinzufügen
Allgemeine Information
YESSS-Bestellnummer
3111-7908
Produktcode
0007822
EAN-Code
05410288078229
Produktgruppe
LED-Modul
Marke
Sylvania
Serie
Pixo Line 90D
Typ
PIXO LINE 1500 90D 840 BL
PIXO LINE 1500 90GR 840 ZWART PIXO LINE 1500 90GR 840 ZWART
Produktbeschreibung

Pixo Line is a linear track system, adds flexibility to any space due the variety of product options Offers an easy installation with two separate modules Push-in/push-out mechanism with GR6d-15 connector Compatible with Zhaga Book 14 Aluminium body, plastic end caps, translucent optic diffuser, light beam angle: 90° Textured black finishing colour. Light color temperature: 4000K, neutral white, max. system power: 50W Max. fixture lumen output: 7400lm, efficacy: 148lm/W, Ra80 typical, LED chromacity: 3 step MacAdam ellipse (SDCM3), IR/UV free light source without heat radiation Multipower driver module with 8 power settings meet all installation needs with one single product, selection and setting on driver - between 17W (350mA), 19W (400mA), 24W (500mA), 29W (600mA), 34W (700mA), 38W (800mA), 43W (900mA), 50W (1050mA) Suitable for installation on 3-circuit tracks, please check compatibility list on the instruction sheet. Compatible with OneTrack Electrical protection: Class III. Degre

Produktspezifikationen
Lampenleistung
0 - 0 W
Spannungsart
AC
Externes Betriebsgerät erforderlich
Nein
Betriebsstrom
0 - 0 mA
Betriebsspannung
0 - 0 V
Lampenspannung
240 - 240 V
Lichtstrom
7400 - 7400 lm
Farbe
weiß
Lichtfarbe nach EN 12464-1
neutralweiß 3300 bis 5300 K
Geeignet für Allgemeinbeleuchtung
Ja
Geeignet für Verkehrsampeln
Nein
Geeignet für Wechselverkehrszeichen
Nein
Geeignet für Schienenverkehr
Nein
Geeignet für Verkehrshinweistafel-Signalierung
Nein
Länge
1464 mm
Breite
37 mm
Höhe
38 mm
Schutzart (IP)
IP20
Mittlere Nennlebensdauer
90000 h
Ausstrahlungswinkel
90 - 90 °
Farbkonsistenz (McAdam-Ellipse)
SDCM3
Kompatibel mit Apple HomeKit
Nein
Kompatibel mit Google Assistant
Nein
Kompatibel mit Amazon Alexa
Nein
