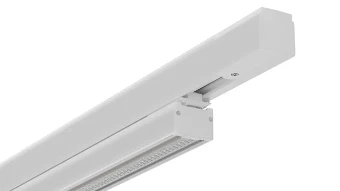

LED-Modul Sylvania Pixo Line Asymmetric

Zur Auswahl hinzufügen
Allgemeine Information
YESSS-Bestellnummer
3111-7914
Produktcode
0007832
EAN-Code
05410288078328
Produktgruppe
LED-Modul
Marke
Sylvania
Serie
Pixo Line Asymmetric
Typ
PIXO LINE 1500 DASYM 840 WH
PIXO LINE 1500 DASYM 840 WIT PIXO LINE 1500 DASYM 840 WIT
Produktbeschreibung

Pixo Line is a linear track system, adds flexibility to any space due the variety of product options Offers an easy installation with two separate modules Push-in/push-out mechanism with GR6d-15 connector Compatible with Zhaga Book 14 Aluminium body, plastic end caps,traslucent double asymmetric optic diffuser, light beam angle:25° white finishing colour. Light color temperature: 4000K, max. system power: 50W Max. fixture lumen output: 7600lm, efficacy: 152lm/W, Ra80 typical, LED chromacity: 3 step MacAdam ellipse (SDCM3), IR/UV free light source without heat radiation Multipower driver module with 8 power settings meet all installation needs with one single product (selection between 17W, 19W, 24W, 29W, 34W, 38W, 43W, 50W) Suitable for installation on 3-circuit tracks, please check compatibility list on the instruction sheet. Compatible with OneTrack Electrical protection: Class III. Degree of protection: IP20, suitable for indoor environment only Light modules should be combined with

Produktspezifikationen
Lampenleistung
50 - 50 W
Externes Betriebsgerät erforderlich
Nein
Betriebsstrom
0 - 0 mA
Betriebsspannung
0 - 0 V
Lichtstrom
0 - 0 lm
Farbe
weiß
Lichtfarbe nach EN 12464-1
neutralweiß 3300 bis 5300 K
Geeignet für Allgemeinbeleuchtung
Ja
Geeignet für Verkehrsampeln
Nein
Geeignet für Wechselverkehrszeichen
Nein
Geeignet für Schienenverkehr
Nein
Geeignet für Verkehrshinweistafel-Signalierung
Nein
Länge
1464 mm
Breite
37 mm
Höhe
38 mm
Schutzart (IP)
IP20
Spezifische Lichtausbeute
152 - 152 lm/W
Ausstrahlungswinkel
90 - 90 °
Farbkonsistenz (McAdam-Ellipse)
SDCM3
Kompatibel mit Apple HomeKit
Nein
Kompatibel mit Google Assistant
Nein
Kompatibel mit Amazon Alexa
Nein
