ATEX LED Floodlight zone 1/21 320W 34500lumen
- 3121-8214
- |
- T100012
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information

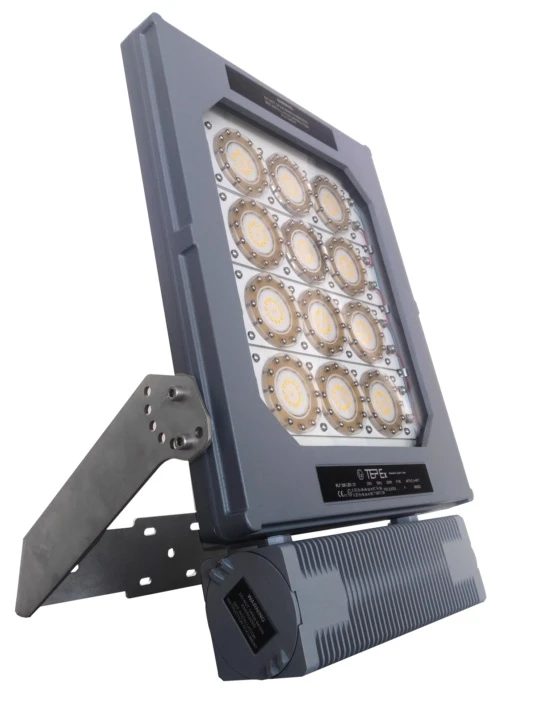

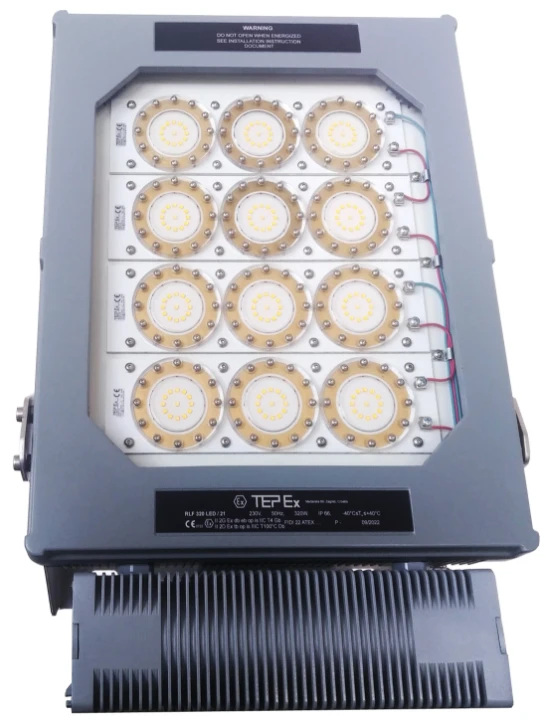

ATEX LED Floodlight zone 1/21 320W 34500lumen
ATEX LED Floodlight zone 1/21 320W 34500lumen
YESSS-Bestellnummer
3121-8214
Produktcode
T100012
EAN-Code
03858895430016
Produktgruppe
Explosion proof luminaire fixed mounting
Marke
TEPEx
Serie
RLF LED Floodlight
Typ
RLF 320 LED-2
Produktbeschreibung
ATEX Ex-e verhoogd veilige floodlight/highbay zone 1/21, 110-240VAC ±10%, 320W, 34500lm, voorzien van 2x messing vernikkelde wartels. Kleurtemperatuur 4700K, afwijkende kleurtemperatuur op aanvraag. Behuizing is poedergecoat aluminium. Borosilicaat lens met siliconen afdichting. Inclusief montagebeugel. Markering voor gas zones: Ex II 2G; Ex db eb op is IIC T4 Gb. Markering voor stof zones: Ex II 2D; Ex tb op is IIIC T100°C Db IP66. ATEX certificaat: FIDI 23 ATEX 0004
Produktspezifikationen
Mounting method
Other
Adjustable
Ja
Lamp type
LED exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Aluminium
Material cover
Glass transparent
Voltage type
AC/DC
Nominal voltage
90 - 305 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Light distributor
Diffuser lens/optic/panel
Beam angle
> 80° - Extreme wide beam
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (IP)
IP66
Degree of protection (NEMA)
Other
Impact strength
IK08
Protection class according to IEC 61140
I
For Ex-zone gas
1, 2
For Ex-zone dust
21, 22
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Suitable for lamp power
320 - 320 W
Max. system power
320 W
Colour of light
White
Colour temperature
4000 - 6500 K
Power factor
0.95
Width
410 mm
Height/depth
72 mm
Length
600 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
5
Conductor cross section
4 mm²
Connection type
Screwed terminal
Exchangeable control gear
Ja
Constant light output (CLO)
Nein
Max. number of luminaires per miniature circuit breaker B16 (MCB)
16
Max. number of luminaires per miniature circuit breaker C16 (MCB)
20
Nominal current
1300 - 1300 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Luminaire efficacy
97 lm/W
With movement sensor
Nein
With presence detector
Nein
Movement sensor/presence detector technology
Other
With light sensor
Nein
Rated luminous flux according to IEC 62722-2- 1
34500 - 34500 lm
