Allgemeine Information

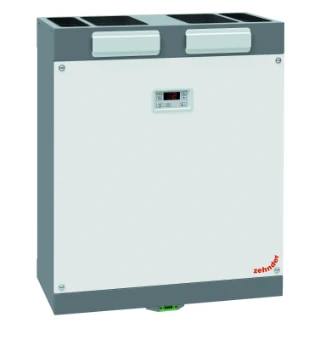

Woonhuis WTW unit WHR 918 RF links
Woonhuis WTW unit WHR 918 RF links
YESSS-Bestellnummer
3048-6905
Produktcode
10013351
EAN-Code
08717573024884
Produktgruppe
Heat recovery unit (residential)
Marke
ZEHNDER
Serie
Warmteterugwinning centraal
Typ
WHR 918-RF-L-SPC
Produktbeschreibung
WHR 918 RF linksWTW-unit incl. bypass, radiografisch bedienbaar, ten behoeve van montage in kleine ruimtes, linker uitvoering, fabricaat Zehnder
Produktspezifikationen
Housing material
Steel
Suitable for central heating boiler connection
Nein
Suitable for wall mounting
Ja
Suitable for floor mounting
Nein
With thermal overload protection
Ja
Suitable for wireless remote control
Ja
With digital display
Ja
Nominal duct diameter
125 - 155 mm
With bypass
Ja
Height
680 mm
Width
558 mm
Depth
299 mm
Suitable for ceiling mounting
Nein
Max. air volume at 100 Pa
180 m³/h
Max. air volume at 150 Pa
170 m³/h
Max. air volume at 200 Pa
150 m³/h
Max. air volume at 250 Pa
120 m³/h
Max. air volume at 300 Pa
70 m³/h
Type of motor
Electronically commutated (EC)
Voltage
230 V
Frequency
50 Hz
Number of phases
1
Electrical connection
Connecting cable with plug with protective contact
Supporting protocol for Modbus
Nein
With wired control unit
Nein
Suitable for wired control unit
Nein
With zone controller
Nein
Suitable for zone controller
Nein
With internal humidity (RH) sensor
Nein
Suitable for (extra) humidity (RH) sensor
Ja
With internal carbon dioxide (CO2) sensor
Nein
Suitable for (extra) carbon dioxide (CO2) sensor
Ja
With heating element
Ja
With constant pressure control
Nein
With constant volume flow control
Nein
Type of frost protection
Heating element
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
65 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
65 %
Weight
22 kg
Heat recovery by
Cross-counter-flow unit
Housing material quality
Other
Material heat exchanger
Plastic
With external humidity (RH) sensor
Nein
