Allgemeine Information

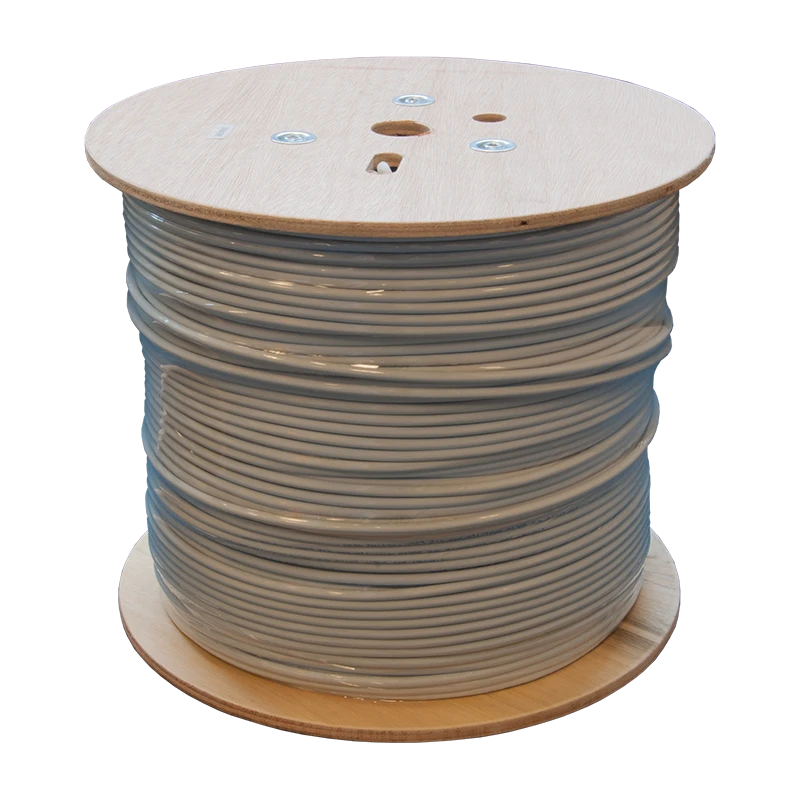

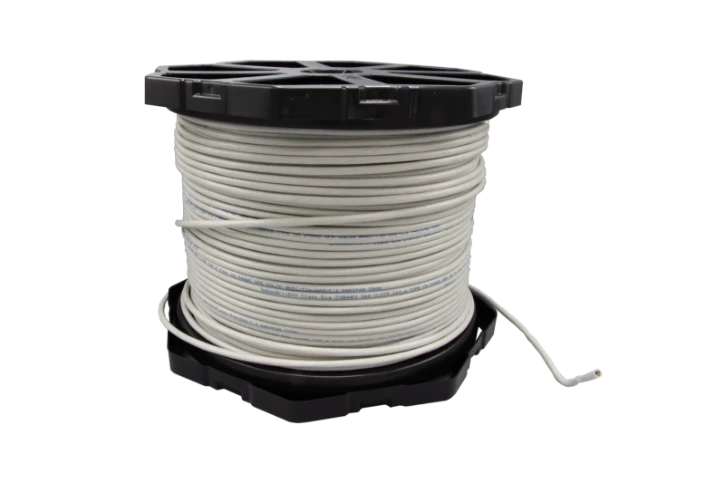

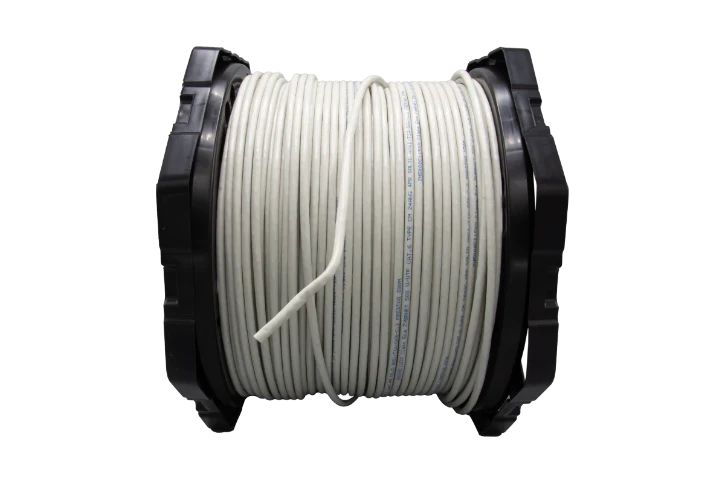

Bulk kabel Cat.6 U/UTP massief pvc 24 awg grijs 305
Bulk kabel Cat.6 U/UTP massief pvc 24 awg grijs 305 meter "Easy Roll"
YESSS-Bestellnummer
0959-4961
Produktcode
ZN500BC11503050M
EAN-Code
08719357017792
Produktgruppe
Data and communication cable
Marke
Zybrnet 500
Serie
Cat.6
Typ
UTP
Produktbeschreibung

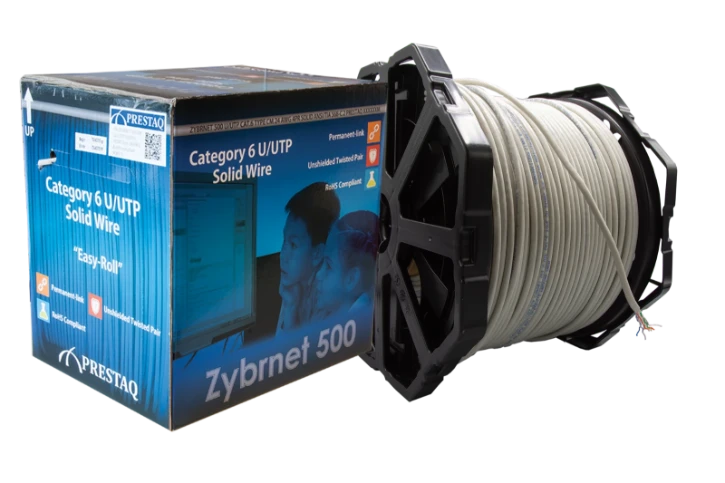

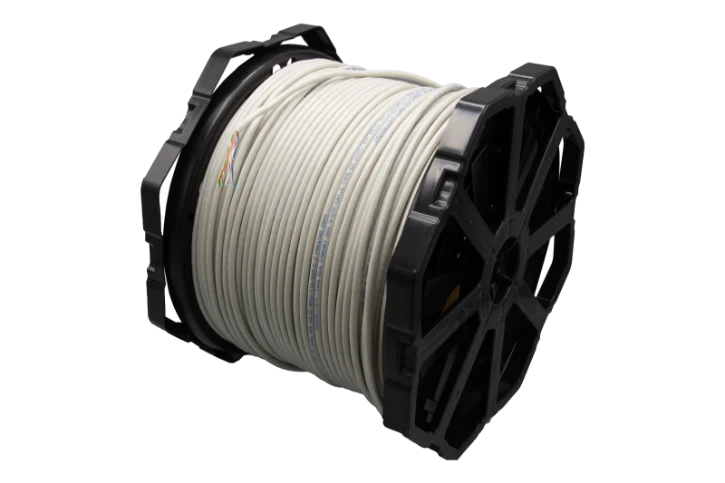

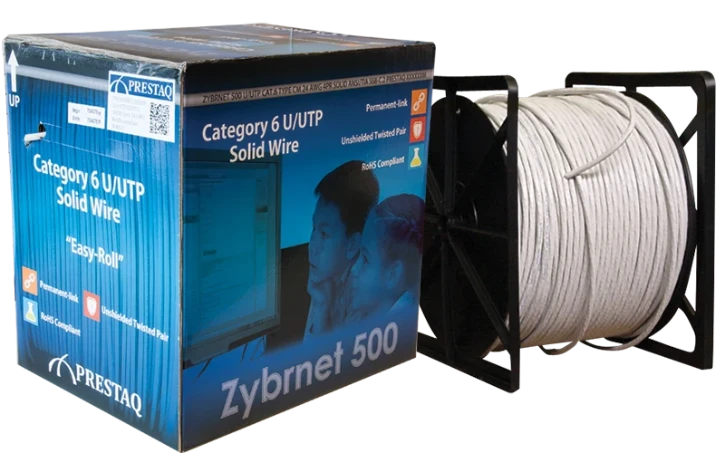

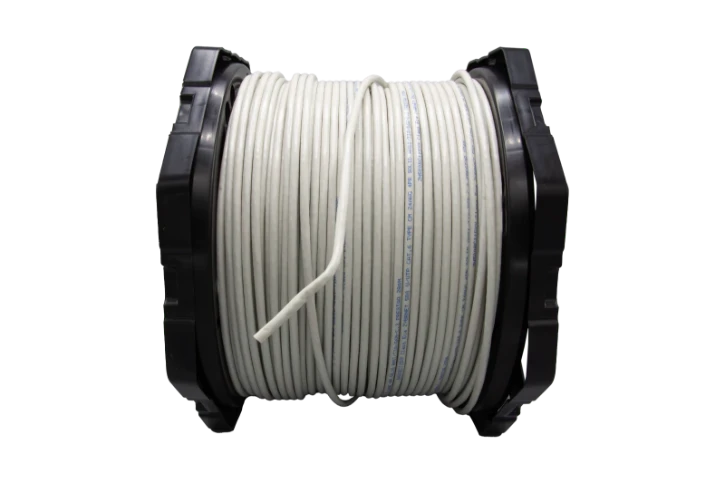

Deze massieve kabel CAT.6 wordt geleverd op een haspel in een doos. Dankzij dit "stress-less-pull" mechanisme voorkomt u knopen of twisten tijdens het trekken van de kabel.
Produktspezifikationen
Conductor surface
Bare
Diameter conductor
0.54 mm
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
None
Stranding
None
Screen over stranding
None
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Eca
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
Nein
Oil resistant according to EN IEC 60811-404
Nein
Outer diameter approximate
5.8 mm
Min. permitted bending radius, stationary application/permanent installation
23.2 mm
Permitted cable outer temperature during assembling/handling
0 - 60 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
6
NVP value
65 %
Suitable for underground installation
Nein
Conductor material
Copper
AWG size
24
Armouring/reinforcement
None
Cable geometry
Round
Suitable as telephone cable
Ja
Suitable as computer data cable
Ja
Suitable as signalling cable
Ja
Cable type
U/UTP
Drain wire
Nein
Characteristic impedance
100 Ohm
Max. tensile strength during installation
0.11 kN
Nominal voltage U
56 V
Halogen free according to EN IEC 60754-1
Nein
Halogen free according to EN IEC 60754-3
Nein
Number of sheath layers
1
Suitable for use as security alarm cable
Nein
With rip cord
Nein
