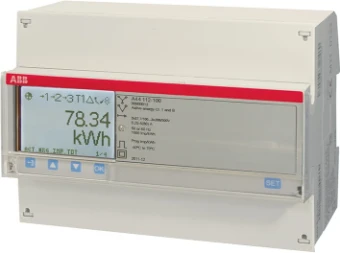

Energiemeter 3 fase indirect 6A 3 x 57/100 ...288/500V AC,
Add to selection
General information
Ordercode YESSS
2082-3580
Product code
2CMA100248R1000
EAN code
07392696002486
Product group
Electricity meter
Brand
ABB Componenten
Serie
System pro M compact
Type
A44 112-100
Energiemeter 3 fase indirect 6A 3 x 57/100 ...288/500V AC,
Energiemeter 3 fase indirect 6A 3 x 57/100 ...288/500V AC, klasse B Pu
STOCK
IN STOCK
0
piece
Product description
Energiemeter 3 fase indirect 6A 3 x 57/100 ...288/500V AC, klasse B Pu
Product specifications
Type of meter
Electronic
Nominal current (In)
1 A
Max. current (Imax)
6 A
Nominal voltage (Un) N-L
57 - 288 V
Nominal voltage (Un) L-L
100 - 500 V
Frequency
50 - 60 Hz
Accuracy class
B
Pole type
Four conductor
Energy type
Effective power
Suitable for
Purchase
Tariff type
One-tariff
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1 - 9999 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
7
Type of interface
RS-485
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Width
123 mm
Depth
65 mm
Height
26.5 mm
Power consumption
0.801 W
