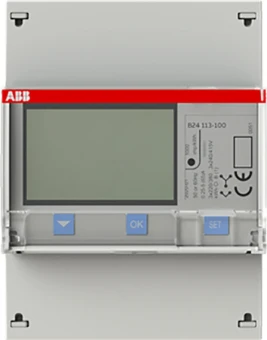

Energiemeter 3f indirect 6A, 230/400V AC klasse B, puls uitgang,
Add to selection
General information
Ordercode YESSS
1895-2702
Product code
2CMA100179R1000
EAN code
07392696001793
Product group
Electricity meter
Brand
ABB Componenten
Serie
System pro M compact
Type
B24 113-100
Energiemeter 3f indirect 6A, 230/400V AC klasse B, puls uitgang,
Energiemeter 3f indirect 6A, 230/400V AC klasse B, puls uitgang, MID M
STOCK
IN STOCK
0
piece
Product description
Energiemeter 3f indirect 6A, 230/400V AC klasse B, puls uitgang, MID M
Product specifications
Type of meter
Electronic
Nominal current (In)
1 A
Max. current (Imax)
6 A
Nominal voltage (Un) N-L
230 - 230 V
Nominal voltage (Un) L-L
400 - 400 V
Frequency
50 - 60 Hz
Accuracy class
B
Pole type
Four conductor
Energy type
Effective power
Suitable for
Purchase
Tariff type
One-tariff
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1 - 999999 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Type of interface
M-bus (wired)
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Width
70 mm
Depth
65 mm
Height
26.5 mm
Power consumption
0.721 W
