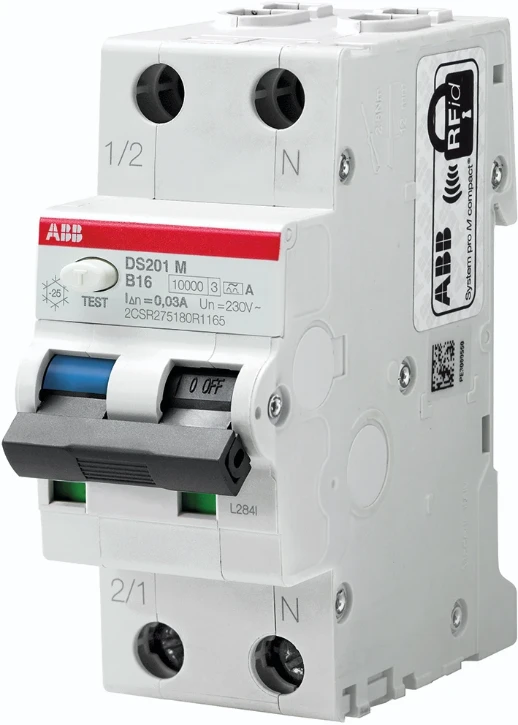

Aardlekautomaat 1P+N, C kar, 10A, 30mA, 10kA
Add to selection
General information
Ordercode YESSS
3045-4815
Product code
2CSR275180R1104
EAN code
08012542583615
Product group
Earth leakage circuit breaker
Brand
ABB Componenten
Serie
System pro M compact
Type
DS201 M C10 A30
Aardlekautomaat 1P+N, C kar, 10A, 30mA, 10kA
Aardlekautomaat 1P+N, C kar, 10A, 30mA, 10kA
STOCK
IN STOCK
0
piece
Product description
Aardlekautomaat 1P+N, C kar, 10A, 30mA, 10kA
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
10 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
10 kA
Rated short-circuit breaking capacity according to IEC 60947-2
10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
10 kA
Disconnection characteristic
Undelayed
Surge current capacity
4 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
With interlocking device
Yes
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 55 °C
Width in number of modular spacings
2
Built-in depth
73 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Power loss
23 W
Mounting method
DIN rail
