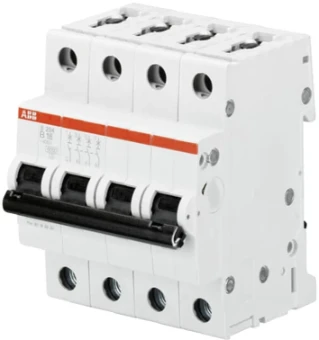

6 kA Automaat 4 polig B kar 63A

Add to selection
General information
Ordercode YESSS
1081-6903
Product code
2CDS254001R0635
EAN code
04016779550994
Product group
Miniature circuit breaker (MCB)
Brand
ABB Componenten
Serie
System pro M compact
Type
S204-B63
6 kA Automaat 4 polig B kar 63A 6 kA Automaat 4 polig B kar 63A
STOCK
IN STOCK
0 piece
Product description

De S204-B63 uit de System pro M compact-serie is een 4-polige installatieautomaat voor het veilig afschakelen en beveiligen van eindgroepen tot 63 A. De B-karakteristiek biedt betrouwbare bescherming van standaard belastingen, terwijl de stroombegrenzende werking schade en stilstand minimaliseert.Twee uitschakelmechanismen zorgen voor zekerheid: vertraagde thermische afschakeling bij overbelasting en een elektromechanisch mechanisme bij kortsluiting. De schakelcapaciteit tot 6 kA bij 230/400 V AC past in uiteenlopende verdeelinrichtingen. Een ondermonteerbaar hulpcontact bespaart tot 50% ruimte en maakt status- en meldfuncties mogelijk. De S200-range voldoet aan IEC/EN 60898‑1, IEC/EN 60947‑2 en UL1077, waardoor toepassing in woon-, utilitaire en industriële installaties zonder concessies mogelijk is.

Product specifications
Release characteristic
B
Number of poles (total)
4
Number of protected poles
4
Rated current
63 A
Rated voltage
400 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC/DC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Overvoltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
4
Built-in depth
69 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55 °C
Connectable conductor cross section multi-wired
0.75 - 25 mm²
Connectable conductor cross section solid-core
0.75 - 35 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
19.2 W
