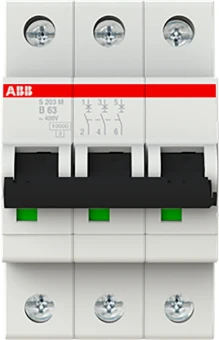

Miniature circuit breaker (MCB) ABB Componenten
Add to selection
General information
Ordercode YESSS
1081-4035
Product code
2CDS273001R0635
EAN code
04016779543880
Product group
Miniature circuit breaker (MCB)
Brand
ABB Componenten
Product specifications
Release characteristic
B
Number of poles (total)
3
Number of protected poles
3
Rated current
63 A
Rated voltage
400 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20 kA
Voltage type
AC/DC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Overvoltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
3
Built-in depth
69 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55 °C
Connectable conductor cross section multi-wired
0.75 - 25 mm²
Connectable conductor cross section solid-core
0.75 - 35 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
14.4 W
