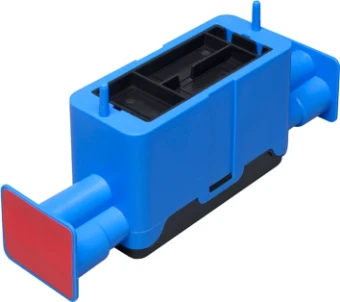

Box/housing for built-in mounting in the wall/ceiling ABB Installatiedozen en -kasten
Add to selection
General information
Ordercode YESSS
3034-1237
Product code
1SPA007110F0190
EAN code
08712507451460
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
ABB Installatiedozen en -kasten
Product specifications
Mounting method
Concrete building
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Single
Provided with revolving ring
No
Couplable
No
Equipped with
Mounting plate
Length
180 mm
Width
55 mm
Depth
80 - 80 mm
Inner depth
76 mm
For number of device inserts
3
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
Yes
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
16/19/20 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
No
Number of inlets
6
Number of included spouts
6
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
Blind cover
Transparent cover
No
Cover attachment
Snapped on
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Luminaire hook mounting
No
Nozzle
Other
Special application
None
Compliant with BS 4662
No
