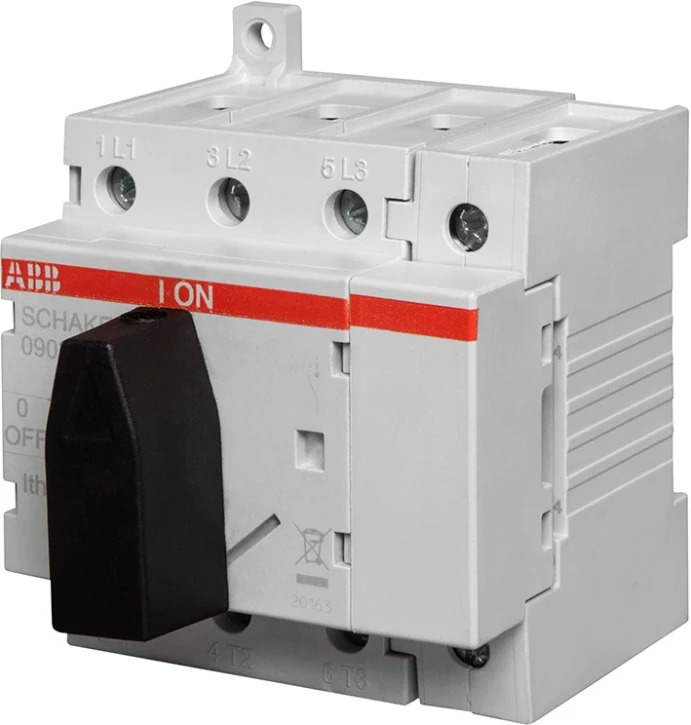

Draaischakelaar 4-polig 63A
- 3038-1826
- |
- 1SPK007900F0001
6
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Draaischakelaar 4-polig 63A
Draaischakelaar 4-polig 63A
Ordercode YESSS
3038-1826
Product code
1SPK007900F0001
EAN code
08712507134813
Product group
Switch disconnector (AC)
Brand
ABB Installatiedozen en -kasten
Serie
Hafonorm
Type
0903.041
Product description
Draaischakelaar 4-polig 63A
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
400 V
Rated operating voltage
230 - 400 V
Rated permanent current Iu
63 A
Rated permanent current at AC-23, 400 V
63 A
Rated permanent current at AC-21, 400 V
63 A
Rated operation power at AC-3, 400 V
25 kW
Rated short-time withstand current lcw
1 kA
Switching power at 400 V
22 kW
Number of poles
4
Number of auxiliary contacts as normally closed contact
4
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Colour control element
Black
Type of control element
Rocker lever
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
