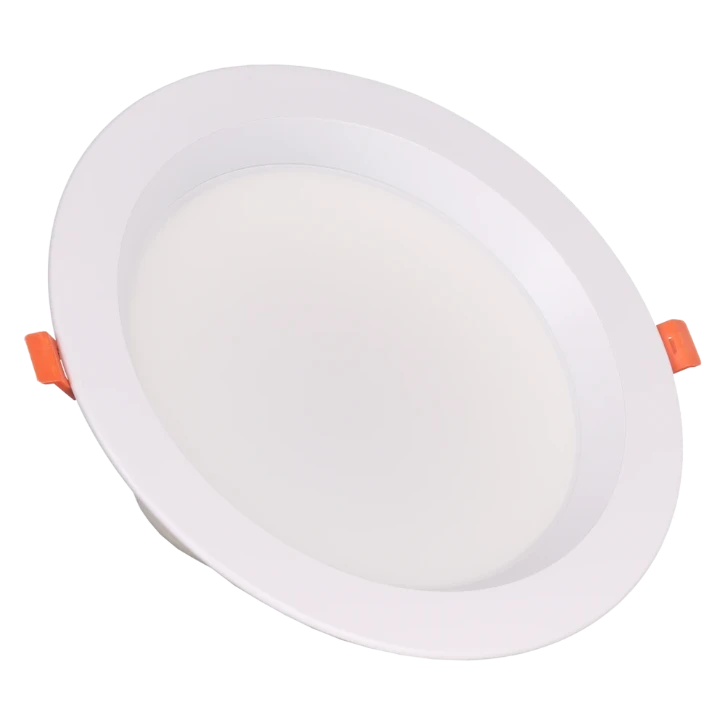

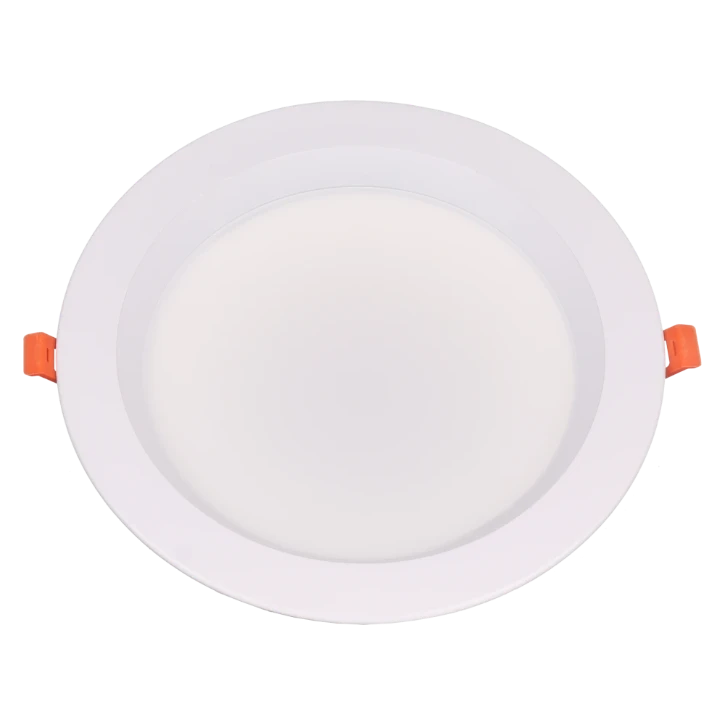

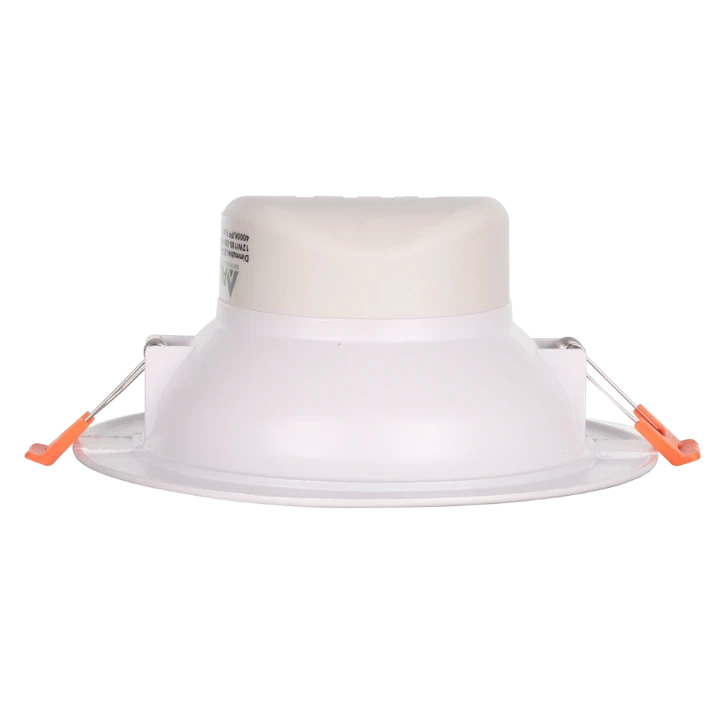

Alp Downlight 18W 830 100lm/W Ø230MM
- 3044-0021
- |
- 2401830011
4
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Alp Downlight 18W 830 100lm/W Ø230MM
Alp Downlight 18W 830 100lm/W Ø230MM
Ordercode YESSS
3044-0021
Product code
2401830011
EAN code
08720094413112
Product group
Downlight/spot/floodlight
Brand
ALP
Serie
Alp Downlight 18W
Type
830 100lm/W Ø230MM
Product description
Alp downlight eenvoudige downlight triac dimbaar geschikt voor gat maat 200MM. Door de brede afdekring ruim toepasbaar en voorzien van 2M netsnoer. 3000K, 18W, 1800LM/W.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Not adjustable
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
White
Material cover
Plastic, opal
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
High-gloss
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Degree of protection (NEMA)
1
Impact strength
IK02
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 50 °C
Suitable for lamp power
18 - 18 W
Max. system power
18 W
Colour of light
White
Colour temperature
2800 - 3200 K
Colour rendering index CRI
80-89
Power factor
0.9
Length
98 mm
Outer diameter
230 mm
Number of poles
2
Conductor cross section
0.75 mm²
Connectable conductor cross section
0.75 - 0.75 mm²
Connection type
Other
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for workplace according to EN 12464-1
Yes
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Colour consistency (McAdam ellipse)
SDCM4
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Built-in diameter
200 - 200 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
60
Max. number of luminaires per miniature circuit breaker C16 (MCB)
91
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
5 - 6 mA
Reflector colour
White
Dimmable
Yes
