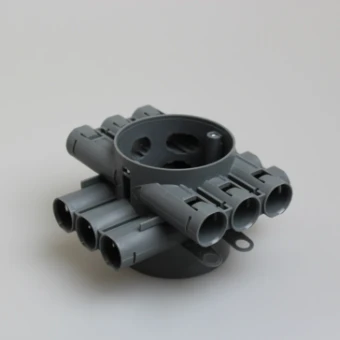

CH80R Centraaldoos hol plafond Ø 16/19 mm
Add to selection
General information
Ordercode YESSS
2222-6707
Product code
AT1007
EAN code
08712259324807
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
ATTEMA
Serie
Centraaldozen
Type
CH80R 16/19 mm
CH80R Centraaldoos hol plafond Ø 16/19 mm
CH80R Centraaldoos hol plafond Ø 16/19 mm
STOCK
IN STOCK
366
piece
Product description
CH80R Centraaldoos hol plafond Ø 16/19 mm
Product specifications
Mounting method
Hollow ceiling
Shape
Round
Construction type
Central conduit box
Model
Single
Provided with revolving ring
No
Couplable
No
Equipped with
None
Diameter
76 mm
Inner depth
78 mm
For number of device inserts
0
With screws
No
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
16/19 mm
Suitable for cable diameter
8 - 12 mm
Pipe locking
Yes
Pipe locking optional
No
Inlet from the rear
No
Number of inlets
12
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Airtight
No
Max. conductor cross section
6 mm²
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
Tunnel branch pipe
Special application
None
