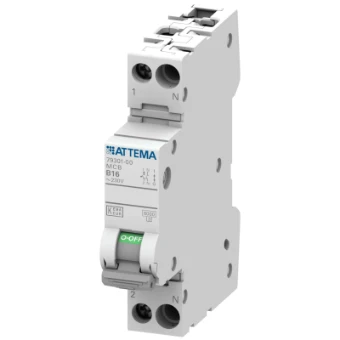

Installatieautomaat 1P+N, 16A, B-kar
Add to selection
General information
Ordercode YESSS
3077-7172
Product code
AT90200
EAN code
08712259536378
Product group
Miniature circuit breaker (MCB)
Brand
ATTEMA
Serie
Click-mate NXT
Type
Installatieautomaat 1P+N
Installatieautomaat 1P+N, 16A, B-kar
Installatieautomaat 1P+N, 16A, B-kar
STOCK
IN STOCK
48
piece
Product description
Installatieautomaat 1P+N, 16A, B-kar
Product specifications
Release characteristic
B
Number of poles (total)
2
Number of protected poles
1
Rated current
16 A
Rated voltage
230 V
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Voltage type
AC
Frequency
50 - 50 Hz
Current limiting class
3
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
1
Built-in depth
70 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 45 °C
Connectable conductor cross section multi-wired
0.75 - 16 mm²
Connectable conductor cross section solid-core
0.75 - 16 mm²
Flush-mounted installation
No
Explosion-proof
No
