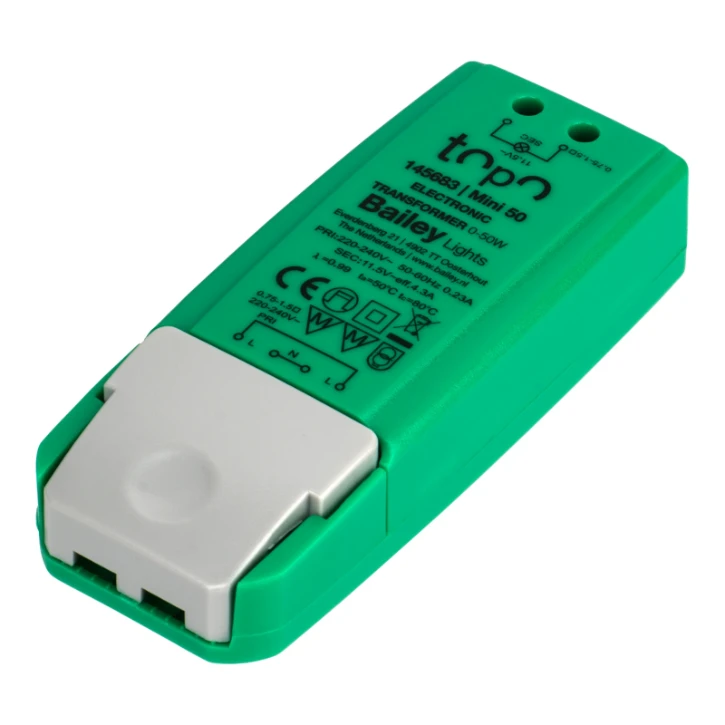

TOPO Mini Transformator 12V AC 0-50W / LED 0-30W DIM

  • 3094-0529
  • |
  • 145683
4 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

TOPO Mini Transformator 12V AC 0-50W / LED 0-30W DIM TOPO Mini Transformator 12V AC 0-50W / LED 0-30W DIM
Ordercode YESSS
3094-0529
Product code
145683
EAN code
08714681456835
Product group
Transformer for low voltage light system/low voltage halogen lamp
Brand
Bailey
Serie
TOPO
Type
TRANSFORMER 0-50W

Product description

Met de Bailey Lights tOpO transformatoren serie introduceert Bailey een aantal elektronische transformatoren die een grote behoefte in de markt op dit gebied afdekken. Topo is Italiaans voor muis en dat is een perfecte vergelijking; flexibel, klein in afmeting maar groot in prestatie. De Bailey tOpO trafo voelt zich prima thuis in kleine ruimtes zoals een verlaagd plafond. Deze dimbare trafo begint bij 0W wat ideaal is voor LED lampen omdat er geen minimale belasting vereist is. Naast 12V LED lampen is deze trafo ook geschikt voor 12V halogeen. Dimbaar met fase afsnijding én fase aansnijding dimmers. De tOpO schakelt zichzelf, indien onbelast aan de secundaire kant, na bepaalde tijd zelf uit. Voor de conversie naar LED: 105W (type Mighty) halogeen = 70W LED, 70W halogeen (type Jerry) = 45W LED, 50W halogeen (type Mini) = 30W LED, 50W halogeen (type Little) = 20W LED. Wij adviseren een maximale belasting van 80%. Om het geheel nog aantrekkelijker en herkenbaarder te maken is de behuizin

Product specifications

Type of transformer
Electronic transformer
Safety transformer
Yes
Input voltage
220 - 240 V
Output voltage
11.5 - 11.5 V
Power
0 - 50 W
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Degree of protection (NEMA)
Other
Connection type primary side
Screw connection
Connection type secondary side
Screw connection
Built-in
Yes
Housing material
Plastic
Colour
Green
Dimmable
Yes
Short-circuit protected
Yes
Overload protection
Yes
Overtemperature protection
Yes
With secondary automatic circuit breaker
No
Number of output positions (pairs)
1
Length
109 mm
Width
42 mm
Height
25 mm
Degree of protection (IP)
IP20
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimming DALI-2
No
Suitable for surface mounting
No
Manufacturer's website
