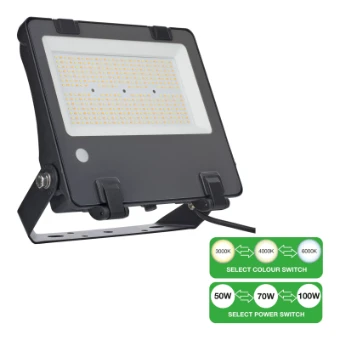

Downlight/spot/floodlight Bailey
Add to selection
General information
Ordercode YESSS
3130-7815
Product code
146799
EAN code
08714681467992
Product group
Downlight/spot/floodlight
Brand
Bailey
Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 260 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Matt
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
45000 h
Degree of protection (NEMA)
4X
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-40 - 50 °C
Suitable for lamp power
50 - 100 W
Max. system power
100 W
Colour of light
White
Colour temperature
3000 - 6500 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
294 mm
Height/depth
70 mm
Length
340 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
0.75 mm²
Connection type
Free conductor end
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Yes
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
92.12 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
88.83 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
78.71 %
Constant light output (CLO)
No
Flickering value Pst LM
0.2
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Stroboscope effect value SVM
0.2
Max. number of luminaires per miniature circuit breaker B16 (MCB)
6
Max. number of luminaires per miniature circuit breaker C16 (MCB)
10
IFTTT support available
No
Unified Glare Ratio (UGR)
19
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
230 - 445 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Operation by Bluetooth
No
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
With presence detector
No
Containing product according to 2019/2020/EU
No
Total harmonic distortion (THD)
20 %
Rated luminous flux according to IEC 62722-2- 1
7000 - 14000 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Emergency power supply system
None
Luminaire efficacy
140 - 140 lm/W
Luminous intensity
4600 - 4600 cd
