Regelkogelkraan, drukafhankelijk 2-weg C215Q-F
- 3111-6861
- |
- C215Q-F
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

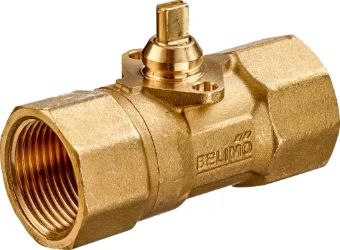

Regelkogelkraan, drukafhankelijk 2-weg C215Q-F
Regelkogelkraan, drukafhankelijk 2-weg C215Q-F
Ordercode YESSS
3111-6861
Product code
C215Q-F
EAN code
07630498102110
Product group
Two way control valve
Brand
Belimo
Serie
Water
Type
S5
Product description
C215Q-FRegelkogelkraan, drukafhankelijk 2-weg, binnendraad Rp, 1/2 inch, DN15, PN25, messing, fabricaat Belimo
Product specifications
Material quality
Dezincification resistant brass (DZR)
Nominal diameter connection 1
DN 15
Outer pipe diameter connection 1
21.3 mm
Connection 1
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
With coupling connection 1
No
Nominal diameter connection 2
DN 15
Outer pipe diameter connection 2
21.3 mm
Connection 2
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
With coupling connection 2
No
Article compression class
PN 16
Max. pressure difference in opened position
280 bar
Automatic flow control
No
With flow measuring point
No
Characteristic curve
Equal percentage
Control ratio (Svo)
50 %
Length of connection 1
29 mm
Working length connection 1
16 mm
Length of connection 2
29 mm
Working length connection 2
16 mm
Kvs value
1.2 m³/h
Kv value
-0.09 - -0.09 m³/h
