General information
Brandklep, RH + mont.fr. 24V, brandw. 120min, FD25-750x450-MF2-M24-S
Brandklep, RH + mont.fr. 24V, brandw. 120min, FD25-750x450-MF2-M24-S
Ordercode YESSS
3089-2085
Product code
FD25 MF2 24V750x450
EAN code
08720238116893
Product group
Fire damper, rectangular
Brand
Solid Air
Serie
Lucht(regel)kleppen en brandkleppen
Type
Brandklep rechthoekig
Product description

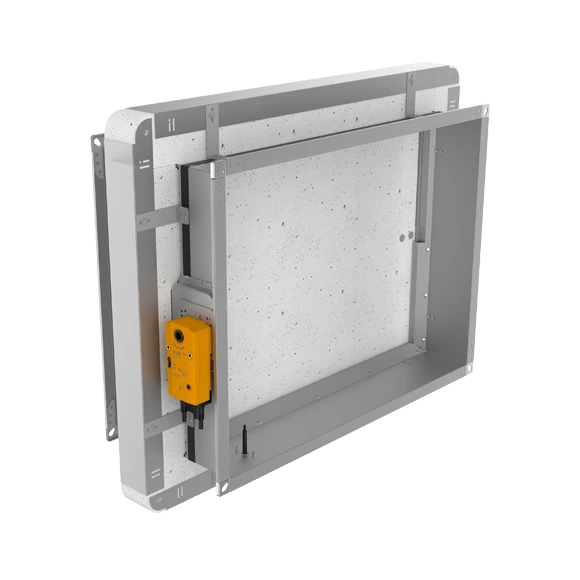

FD25 MF2 M24S O 750x450Brandklep, rechthoekig, klepbladdikte 25 mm, breedte 750 mm x hoogte 450 mm, installatieframe 2, servomotor Belimo BFL24-T met thermo-elektrische zekering 72°C en eindschakelaars klepstand open en dicht, in overstemming met EN 15650, brandwerendheid tot 120 minuten afhankelijk van inbouwconstructie, voorzien van inspectieopening
Product specifications
Material
Steel
Nominal duct width
750 mm
Nominal duct height
450 mm
Connection 1
Duct connection profile
Connection 2
Duct connection profile
Surface protection
Sendzimir galvanised
Lacquered
No
Control side, right
Yes
Control side, left
Yes
Operation
Electromotor 24 V
Built-on end switch in closed position
Yes
Built-on end switch in open position
Yes
Can be used on solid walls/floors
Yes
Can be used directly against walls/floors
Yes
Can be used in separating partitions
Yes
Can be used at a distance from walls
No
Length
350 mm
Min. operating space required
120 mm
