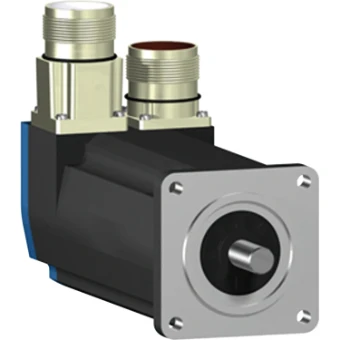

Electric motor Schneider Electric
Add to selection
General information
Ordercode YESSS
0517-8025
Product code
BSH0551T32A1A
EAN code
03389118158375
Product group
Electric motor
Brand
Schneider Electric
Product specifications
Model
Rotary current synchronous motor
Rated voltage
480 V
Rated frequency
50 - 60 Hz
Voltage type
AC
Number of phases
3
Rated performance at rated frequency
0.15 kW
Rated rotational speed at rated frequency
8000 1/min
Degree of protection (IP)
IP65
Number of poles
6
Construction type
Other
Insulation class according to IEC
Other
Duty cycle
Other
Nominal torque
0.43 Nm
Starting current ratio
0
Starting torque ratio
0
Breakdown torque ratio
0
Bearing
Other
With anti-condensation
No
With positive temperature coefficient resistor (PTC)
No
With resistance temperature detector (RTD)
No
Intrinsic safety (IS)
None
Suitable for frequency control
No
Operating temperature
0 - 20 °C
Overload capability
No
Cooling method
Other
Shaft end type
Parallel key
Vacuum pressure impregnation (VPI)
Other
Housing material
Other
Motor efficiency class
Other
