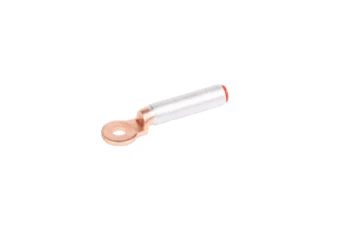

Perskabelschoen AL-CU bimetaal, DIN 46329, 16mm² M10
Add to selection
General information
Ordercode YESSS
3088-7898
Product code
183211
EAN code
04021103091302
Product group
Crimp cable lug for aluminium conductors
Brand
Cimco
Perskabelschoen AL-CU bimetaal, DIN 46329, 16mm² M10
Perskabelschoen AL-CU bimetaal, DIN 46329, 16mm² M10
STOCK
IN STOCK
0
piece
Product description
Kabelschoen AL-CU, 16qmm-M10. Materiaal E-Al en E-Cu volgens EN 13600. Gevuld met contactvet, met stekker. Buisafmetingen volgens DIN 46329, met persmarkeringen. Voor trekontlaste verbindingen van Al-kabels volgens DIN 48201-5 en Al-kabels volgens DIN EN 50182.
Product specifications
Cross section form
Round
Nominal cross section aluminium, RM/SM
16 - 16 mm²
Nominal cross section aluminium, SE
25 - 25 mm²
Bolt dimension (metric)
10
Material
Aluminium/copper
Suitable for Al/St-cables
Yes
Longitudinal sealed
Yes
Code digit
12
Number of mounting holes
1
Colour
Grey
Slender flange model
No
Insulated
No
Pre-filled with jointing compound
No
Compliant with AS 4325.1
No
According to DIN
Yes
