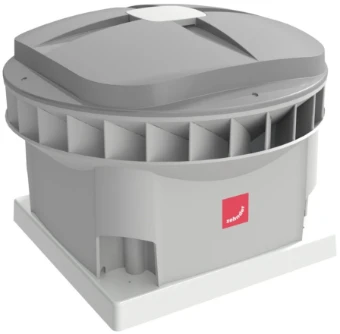

ComfoRoof MX 110 D Manual
Add to selection
General information
Ordercode YESSS
3100-2397
Product code
476700210
EAN code
08717573041157
Product group
Ventilator for mounting on the roof
Brand
ZEHNDER
Serie
Dakventilatoren
Type
ComfoRoof MX Manual
ComfoRoof MX 110 D Manual
ComfoRoof MX 110 D Manual
STOCK
IN STOCK
0
piece
Product description
ComfoRoof MX 110 D ManualDakventilator 400V met hoogrendement gelijkstroommotor en verhoogd inregelgemak middels QR code. Met modbus TCP-aansluiting, geïntegreerde klok en 0-10V regeling. Fabricaat Zehnder
Product specifications
Housing material
Plastic
Housing material quality
Polypropylene (PP)
Surface protection housing
Other
Material impeller
Aluminium
Material quality impeller/pump wheel
Al 99.5 (3.0255)
Surface protection impeller
Other
Frequency
50 Hz
Nominal current
0.87 A
Single-speed motor
No
Single-speed motor controllable with
Electronic
Multi-speed motor with
Other
With maintenance-/service switch
Yes
With thermal overload protection
No
Back draught shutter
None
Fan tiltable
No
Electrical connection
Terminals
Exhaust direction
Diagonal
Cover design
Round
Indirect drive
No
Axial model
No
Air supply roof fan
No
Max. medium temperature (continuous)
60 °C
Operating height
473 mm
Base size, internal, square
440 mm
Base size, internal, round
196 mm
Nominal duct diameter
196 mm
Max. air volume at 150 Pa
1480 m³/h
Nominal voltage
400 V
Type of motor
Electronically commutated (EC)
Number of phases
2
With pressure sensor
No
Suitable for (extra) pressure sensor
Yes
With constant volume flow control
No
Integrated timer
Yes
With wireless remote control
No
Suitable for wireless remote control
No
Control signal
Other
Operation by app
Yes
Supporting protocol for MODBUS
Yes
Rotational speed
1785 1/min
Sound pressure level at 4 m (outdoor) at Qmax
54 dB(A)
With sound absorber
No
Pitch measure
330 - 330 mm
Max. electric power input
0.183 W
Product information
