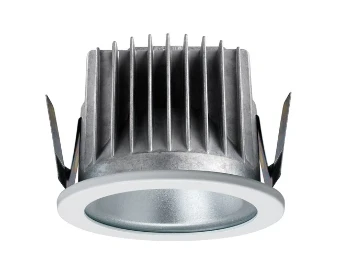

MYRIAD IP65 4000K PHDIM WHT EM
Add to selection
General information
Ordercode YESSS
1466-4715
Product code
2049530
EAN code
05025768495306
Product group
Downlight/spot/floodlight
Brand
Concord
Serie
Myriad V IP65 White Bezel
Type
MYRIAD IP65 4000K PHDIM WHT EM
MYRIAD IP65 4000K PHDIM WHT EM
MYRIAD IP65 4000K PHDIM WHT EM
STOCK
IN STOCK
0
piece
Product description
MYRIAD IP65 4000K PHASE DIM WHITE EM
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
With movement sensor
No
With light sensor
No
With light source
Yes
Suitable for number of light sources
1
Housing colour
Other
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
Yes
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
None
Light distribution
Symmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Impact strength
IK02
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
0 - 0 °C
Suitable for lamp power
0 - 0 W
Max. system power
16 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
90-100
Power factor
0
Width
72 mm
Height/depth
72 mm
Length
72 mm
Outer diameter
90 mm
Type of wiring
Ending
Conductor cross section
0 mm²
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM3
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
No
Colour of light adjustable
No
Beam angle adjustable
No
Built-in diameter
0 - 0 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
0
Max. number of luminaires per miniature circuit breaker C16 (MCB)
0
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
0 - 72.7 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
No
Containing product according to 2019/2020/EU
Yes
Rated luminous flux according to IEC 62722-2- 1
1050 - 1050 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
None
Luminous flux in emergency mode
347 lm
Luminaire efficacy
88 - 88 lm/W
