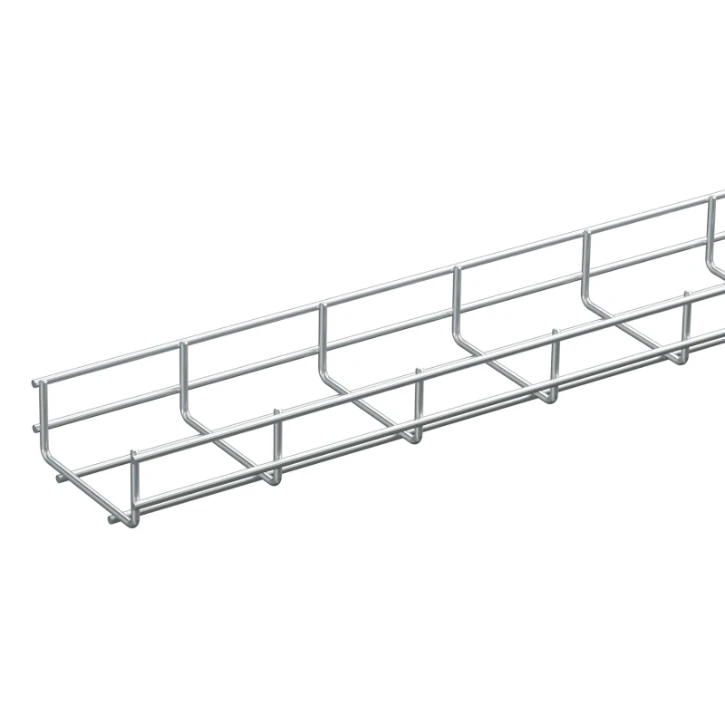

DRAADGOOT 120/60-Ø5 L=2,5M EV
Add to selection
General information
Ordercode YESSS
3077-3889
Product code
1149101
EAN code
07332227011013
Product group
Mesh cable tray
Brand
Defem
Serie
Defem
Type
1149101
DRAADGOOT 120/60-Ø5 L=2,5M EV
DRAADGOOT 120/60-Ø5 L=2,5M EV
STOCK
IN STOCK
0 meter
Product specifications
Profile shape
U-shape
Height
60 mm
Width
120 mm
Length
2500 mm
Usable cross section
66000 mm²
Model
Without connector
Integrated partition
None
Suitable for circuit integrity
Yes
Material
Steel
Material quality
Other
Surface protection
Galvanic/electrolytic zinc plated
Load test type according to IEC 61537
Type I
Weight
1.24 kg/m
Working length
2500 mm
Diameter longitudinal wire
5 mm
Diameter transverse wire
5 mm
Working temperature
-40 - 120 °C
Safe working load according to IEC 61537 with support spacing 1.5 m
631 N/m
Safe working load according to IEC 61537 with support spacing 2.0 m
500 N/m
Safe working load according to IEC 61537 with support spacing 2.5 m
381 N/m
Safe working load according to IEC 61537 with support spacing 3.0 m
250 N/m
Type of connection
Screwed
