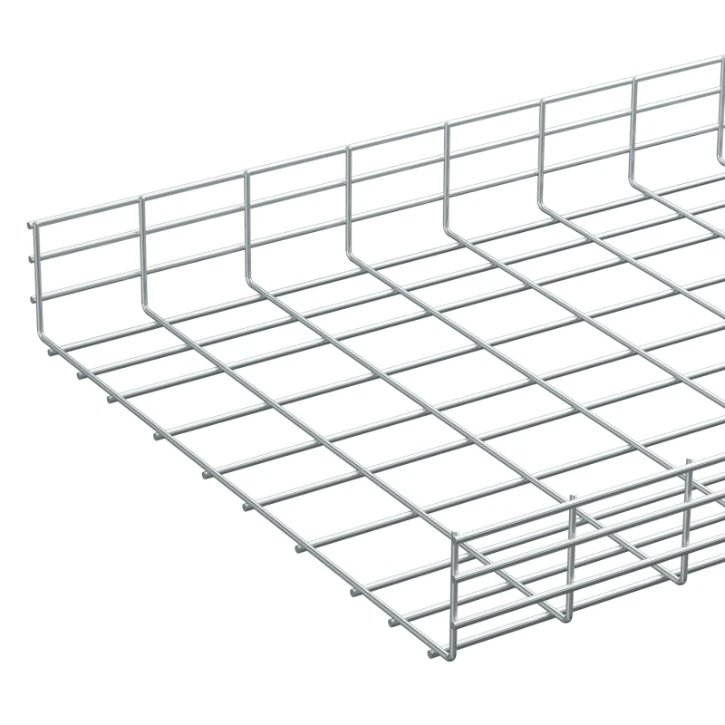

Draadgoot 622/110-Ø5/6 L=2.5M ZINC PL.
- 3086-4366
- |
- 1149109
0 meter
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Draadgoot 622/110-Ø5/6 L=2.5M ZINC PL.
Draadgoot 622/110-Ø5/6 L=2.5M ZINC PL.
Ordercode YESSS
3086-4366
Product code
1149109
EAN code
07332227011099
Product group
Mesh cable tray
Brand
Defem
Serie
Defem
Product description
Product specifications
Profile shape
U-shape
Height
110 mm
Width
622 mm
Length
2500 mm
Usable cross section
55000 mm²
Model
Without connector
Integrated partition
None
Suitable for circuit integrity
Yes
Material
Steel
Material quality
Other
Surface protection
Galvanic/electrolytic zinc plated
Load test type according to IEC 61537
Type I
Weight
4.33 kg/m
Working length
2500 mm
Diameter longitudinal wire
5 mm
Diameter transverse wire
6 mm
Working temperature
-40 - 120 °C
Safe working load according to IEC 61537 with support spacing 1.5 m
1986 N/m
Safe working load according to IEC 61537 with support spacing 2.0 m
1513 N/m
Safe working load according to IEC 61537 with support spacing 2.5 m
1052 N/m
Safe working load according to IEC 61537 with support spacing 3.0 m
671 N/m
Type of connection
Screwed
