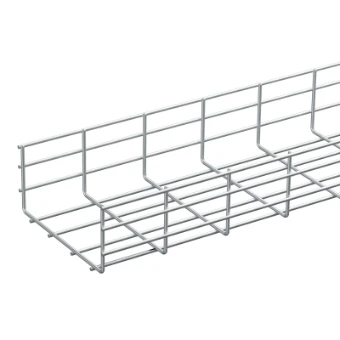

MESH TRAY 220/110-Ø5 L=2.5M ZINC PLATED
- 3077-3892
- |
- 1149105
0 meter
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
MESH TRAY 220/110-Ø5 L=2.5M ZINC PLATED
MESH TRAY 220/110-Ø5 L=2.5M ZINC PLATED
Ordercode YESSS
3077-3892
Product code
1149105
EAN code
07332227011051
Product group
Mesh cable tray
Brand
Defem
Product description
Product specifications
Profile shape
U-shape
Height
110 mm
Width
220 mm
Length
2500 mm
Usable cross section
44000 mm²
Model
Without connector
Integrated partition
None
Suitable for circuit integrity
Yes
Material
Steel
Material quality
Other
Surface protection
Galvanic/electrolytic zinc plated
Load test type according to IEC 61537
Type I
Weight
2.32 kg/m
Working length
2500 mm
Diameter longitudinal wire
5 mm
Diameter transverse wire
5 mm
Working temperature
-40 - 120 °C
Safe working load according to IEC 61537 with support spacing 1.5 m
1250 N/m
Safe working load according to IEC 61537 with support spacing 2.0 m
973 N/m
Safe working load according to IEC 61537 with support spacing 2.5 m
684 N/m
Safe working load according to IEC 61537 with support spacing 3.0 m
552 N/m
Type of connection
Screwed
