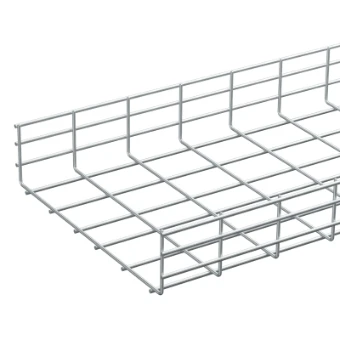

MESH TRAY 422/110-Ø5/6 L=2.5M ZINC PL.
- 3077-3894
- |
- 1149107
0 meter
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
MESH TRAY 422/110-Ø5/6 L=2.5M ZINC PL.
MESH TRAY 422/110-Ø5/6 L=2.5M ZINC PL.
Ordercode YESSS
3077-3894
Product code
1149107
EAN code
07332227011075
Product group
Mesh cable tray
Brand
Defem
Product description
Product specifications
Profile shape
U-shape
Height
110 mm
Width
422 mm
Length
2500 mm
Usable cross section
66000 mm²
Model
Without connector
Integrated partition
None
Suitable for circuit integrity
Yes
Material
Steel
Material quality
Other
Surface protection
Galvanic/electrolytic zinc plated
Load test type according to IEC 61537
Type I
Weight
3.84 kg/m
Working length
2500 mm
Diameter longitudinal wire
5 mm
Diameter transverse wire
6 mm
Working temperature
-40 - 120 °C
Safe working load according to IEC 61537 with support spacing 1.5 m
1868 N/m
Safe working load according to IEC 61537 with support spacing 2.0 m
1381 N/m
Safe working load according to IEC 61537 with support spacing 2.5 m
921 N/m
Safe working load according to IEC 61537 with support spacing 3.0 m
565 N/m
Type of connection
Screwed
