General information

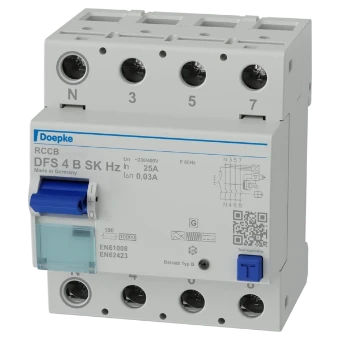

Aardleksch DFS4 025-4/003-B SK Hz60
Aardleksch DFS4 025-4/003-B SK Hz60
Ordercode YESSS
3121-0431
Product code
09124882
EAN code
04014712248281
Product group
Residual current circuit breaker (RCCB)
Brand
Doepke
Serie
Kern assortiment
Type
DFS4 025-4/003-B SK Hz60
Product description
Aardleksch DFS4 025-4/003-B SK Hz60
Product specifications
Number of poles
4
Rated voltage
400 V
Rated current
25 A
Rated insulation voltage Ui
400 V
Rated impulse withstand voltage Uimp
4 kV
Mounting method
DIN rail
Leakage current type
B
Selective protection
No
Short-time delayed tripping
Yes
Short-circuit breaking capacity (Icw)
10 kA
Surge current capacity
3 kA
Frequency
60 Hz
Additional equipment possible
Yes
With interlocking device
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
69 mm
Ambient temperature during operating
-25 - 40 °C
Pollution degree
2
Connectable conductor cross section multi-wired
1.5 - 50 mm²
Connectable conductor cross section solid-core
1.5 - 50 mm²
Rated fault current
0.03 A
Voltage type
AC
Explosion-proof
No
Power loss
3.7 W
RAL-number (similar)
7035
Colour
Grey
Device width
72 mm
Device height
85 mm
Device depth
75 mm
