Tube Type SEA 42W 7434lm Standaard driver 120⁰
Add to selection
General information
Ordercode YESSS
3133-6867
Product code
DP00006
Product group
Ceiling-/wall luminaire
Brand
Doublepower
Serie
SEA
Type
DP-SA-314-HO-SS-840-BB-P
Tube Type SEA 42W 7434lm Standaard driver 120⁰
Tube Type SEA 42W 7434lm Standaard driver 120⁰
STOCK
IN STOCK
0
piece

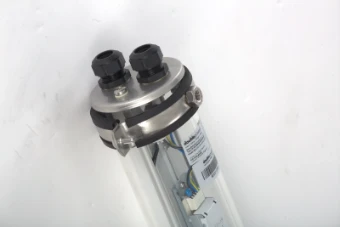

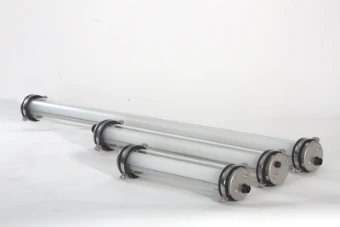

Product description
| DoublepowerBuisverlichting Type SEA 42W 7,434 lumen, DALI driver optie, optics 120⁰,andere optics 60⁰, 90⁰ en batwing mogelijk, 178lm/w~195lm/w, IP68, 4000K,2700K~6500K mogelijk, L80B10 > 100 000 hours bij Ta +25 °C,omgevingstemperatuur -40⁰C~+50⁰C, omgevingstemperatuur +80⁰C mogelijk, CRI>80 ~>90, Behuizing polycarbonaat, optie behuizing glas mogelijk, LensPMMA, Afmetingen 1005x105x135mm, met connector, wartel en doorvoerbedradingmogelijk, Autonomie (noodverlichting) 3 uur optie |
Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Housing colour
Other
Material cover
Plastic, transparent
Type of grid
None
Voltage type
AC/DC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Asymmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Rated lifetime L70/B50 at 25 °C
100000 h
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Rated ambient temperature according to IEC 62722-2-1
-40 - 50 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Suitable for lamp power
42 - 42 W
Max. system power
42 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
105 mm
Height/depth
135 mm
Length
1005 mm
Outer diameter
80 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Bus
Surface protection housing
Other
Exchangeable control gear
Yes
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
100 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
100 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
100 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
1 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
10
Max. number of luminaires per miniature circuit breaker C16 (MCB)
14
Flickering value Pst LM
1
Stroboscope effect value SVM
0
Constant light output (CLO)
Yes
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
22
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Movement sensor/presence detector technology
Other
Dimmable
No
Luminaire efficacy
178 - 194 lm/W
Rated luminous flux according to IEC 62722-2- 1
5065 - 5065 lm
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
Other
Max. number of luminaires per miniature circuit breaker C10 (MCB)
8
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1.5 - 2.5 mm²
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With mounting material
Yes
With switch
No
Product information
