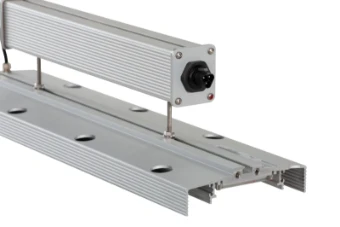

Highbay Typ eSKY 2.0 111W 19313lm Dali Driver optics 90⁰
Add to selection
General information
Ordercode YESSS
3133-6863
Product code
DP00002
Product group
High bay luminaire
Brand
Doublepower
Serie
SKY Dali
Type
DP-SK2-428-HO-DS-840-90-N
Highbay Typ eSKY 2.0 111W 19313lm Dali Driver optics 90⁰
Highbay Typ eSKY 2.0 111W 19313lm Dali Driver optics 90⁰
STOCK
IN STOCK
0
piece
Product description
| DoublepowerHighbay Type SKY 2.0 111W 19.313 lumen Dali Driver optics 90⁰, optics 60⁰,120⁰ en batwing mogelijk, 174lm/w~185lm/w, IP65, 4000K, 2700K~6500K mogelijk,L80B10 > 80 000 hours bij Ta +50 °C, omgevingstemperatuur -30⁰C~+50⁰C,omgevingstemperatuur +80⁰C mogelijk, CRI >80 ~>90, Behuizinggeanodiseerd alluminium, Lens PMMA, Afmetingen 725x105x135mm, met connector |
Product specifications
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Suitable for auxiliary lamp
No
Lamp holder
Other
Housing material
Aluminium
Housing colour
Aluminium
Voltage type
AC/DC
Nominal voltage
220 - 230 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
Yes
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
Yes
Dimming with push-button
Yes
Light distribution
Symmetric/asymmetric
Light distributor
Other
Reflector
Other
Material reflector
Other
Beam angle
> 80° - Extreme wide beam
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (IP)
IP65
Degree of protection (NEMA)
1
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Filament test according to IEC 60695-2-11
None
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Suitable for lamp power
83 - 111 W
Max. system power
111 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
151 mm
Height/depth
144 mm
Length
1012 mm
Type of wiring
Ending
Number of poles
5
Conductor cross section
2.5 mm²
Connection type
Screwed terminal
Suitable for emergency lighting
No
With protective cover
Yes
Nominal current
225 - 250 mA
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM2
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
1 %
Constant light output (CLO)
Yes
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
10
Max. number of luminaires per miniature circuit breaker C16 (MCB)
14
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
Other
Photobiological safety according to EN 62471
RG1
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
With movement sensor
No
Movement sensor/presence detector technology
Other
Dimmable
Yes
Dimming DALI-2
Yes
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
Yes
Luminaire efficacy
180 - 190 lm/W
Rated luminous flux according to IEC 62722-2- 1
180 - 190 lm
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1 - 2.5 mm²
With presence detector
No
With light sensor
No
Containing product according to 2019/2020/EU
Yes
Ball-proof according to DIN 18032-3
Yes
