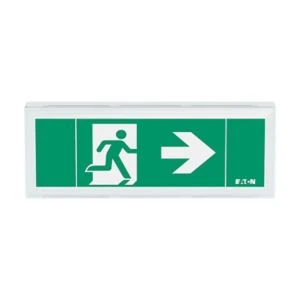

Noodverlichting, decentr. AT/CGL+, enkelzijdig incl. pict., 12m, IP66
Add to selection
General information
Ordercode YESSS
3092-4218
Product code
FT1EW4ICGL18IP
EAN code
03660191809188
Product group
Emergency luminaire
Brand
Eaton Blessing
Serie
FlexiTech
Type
FlexiTech FT1EW CGL+, wandmont. 12m
Noodverlichting, decentr. AT/CGL+, enkelzijdig incl. pict., 12m, IP66
Noodverlichting, decentr. AT/CGL+, enkelzijdig incl. pict., 12m, IP66
STOCK
IN STOCK
0
piece
Product description
Eaton FlexiTech FlexiTech FT1EW CGL+, wandmont. 12m Noodverlichting, decentr. AT/CGL+, enkelzijdig incl. pict., 12m, IP66
Product specifications
Mounting method
Wall surface mounted
Function
Escape route signage
Suitable for labelling type
Insert sheet/plate
With pictogram
Yes
With remote switch connection
Yes
Battery technology
Lithium-ion
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
None
Number of lighting heads
1
Housing material
Plastic
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal voltage
230 - 230 V
Light distributor
Diffuser lens/optic/panel
Degree of protection (IP)
IP66
Impact strength
IK07
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
5 - 35 °C
Max. system power
1.1 W
Colour temperature
6500 - 6500 K
Power factor
0.44
Recognition distance
12 m
Nominal operation time
1 - 8 h
Width
86 mm
Height/depth
34 mm
Length
231 mm
Built-in width
102 mm
Built-in height/depth
50 mm
Built-in length
252 mm
Number of poles
3
Conductor cross section
2.5 mm²
Connection type
Plug-in connection
With remote control
No
Exchangeable control gear
No
Constant light output (CLO)
No
Energy efficiency class of the light source according to EU regulation 2019/2015
A
RAL-number housing
9003
Suitable for standby switching
No
Suitable for continuous circuit
No
