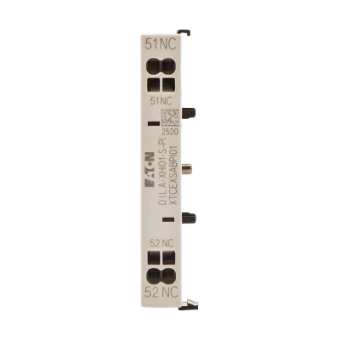

Hulpcontactblok, 0m, 1v, zijmontage, DILA, DILM7 - DILM15, Push-in
Add to selection
General information
Ordercode YESSS
3074-7022
Product code
199324
EAN code
04015081974085
Product group
Auxiliary contact block
Brand
Eaton
Serie
DILA
Type
DILA-XHI01-S-PI
Hulpcontactblok, 0m, 1v, zijmontage, DILA, DILM7 - DILM15, Push-in
Hulpcontactblok, 0m, 1v, zijmontage, DILA, DILM7 - DILM15, Push-in
STOCK
IN STOCK
0
piece
Product description
Hulpcontactblokje, met onderling vergrendelde tegenoverliggende contacten, functie: voor standaard toepassingen, 1-polig, aansluittechniek: Push-in klemmen, Ith 16 A, nominale bedrijfsstroom AC-15 220 V 230 V 240 V: Ie= 4 A, nominale bedrijfsstroom AC-15 380 V 400 V 415 V: Ie= 4 A, contacten nc = normaal gesloten: 1 nc, type montage: Zijdelings gemonteerd, voor gebruik met: DILA…-PI, DILM7…-PI, DILM9…-PI, DILM12…-PI, DILM15…-PI, DILMP20…-PI, type: hulpcontacten zijmontage, instructies: Dwangmatige vergrendelde contacten volgens IEC/EN 60947-5-1 bijlage L, in de hulpcontactblokjes
Product specifications
Number of contacts as change-over contact
0
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of fault-signal switches
0
Rated operation current Ie at AC-15, 230 V
4 A
Type of electric connection
Spring clamp connection
Model
Clip-on
Mounting method
Side mounting
Lamp holder
None
