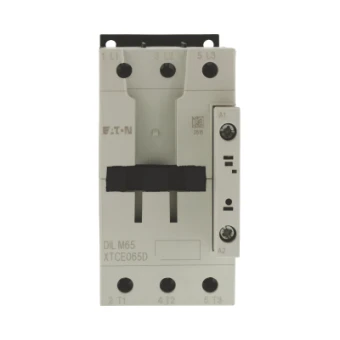

Magneetschakelaar DILM65(415V50HZ,480V60HZ), 30kW, 0m, 0v
Add to selection
General information
Ordercode YESSS
0044-1118
Product code
277897
EAN code
04015082778972
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM65(415V50HZ,480V60HZ)
Magneetschakelaar DILM65(415V50HZ,480V60HZ), 30kW, 0m, 0v
Magneetschakelaar DILM65(415V50HZ,480V60HZ), 30kW, 0m, 0v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, Magneetschakelaars tot 170 A, 3-polig, Gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: schroefklemmen, Opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3., IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking., Aantal polen: 3-polig, Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 65 A, Nominale bedrijfsstroom AC-1 Conventionele thermische stroom in vrije lucht, 3-polig
Product specifications
Rated control supply voltage AC 50 Hz
415 - 415 V
Rated control supply voltage AC 60 Hz
480 - 480 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
98 A
Rated operation current Ie at AC-3, 400 V
65 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation current Ie at AC-4, 400 V
25 A
Rated operation power at AC-4, 400 V
12 kW
Rated operation power NEMA
37 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Width
55 mm
Height
115 mm
Depth
132.1 mm
