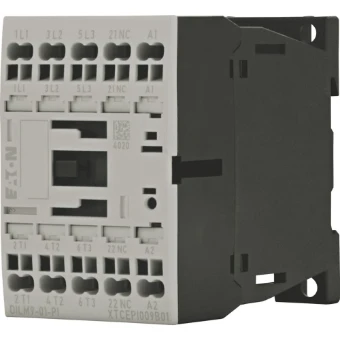

Magneetschakelaar DILM9-01(110V50HZ,120V60HZ), 4kW, 0m, 1v, Push-in
Add to selection
General information
Ordercode YESSS
3074-6948
Product code
199235
EAN code
04015081973194
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILM9-01(110V50HZ,120V60HZ)-PI
Magneetschakelaar DILM9-01(110V50HZ,120V60HZ), 4kW, 0m, 1v, Push-in
Magneetschakelaar DILM9-01(110V50HZ,120V60HZ), 4kW, 0m, 1v, Push-in
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, magneetschakelaars tot 95 A, 3-polig, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Push-in klemmen, opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3. Aantal polen: 3-polig, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 9 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig, 50 - 60 Hz open bij 40 °C: Ith = Ie = 22 A, in behuizing: Ith = 18 A
Product specifications
Rated control supply voltage AC 50 Hz
110 - 110 V
Rated control supply voltage AC 60 Hz
120 - 120 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
22 A
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation current Ie at AC-4, 400 V
6 A
Rated operation power at AC-4, 400 V
2.5 kW
Rated operation power NEMA
0 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Spring clamp connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
24 - 690 V
Operating voltage AC 60 Hz
24 - 690 V
Width
45 mm
Height
68 mm
Depth
75 mm
