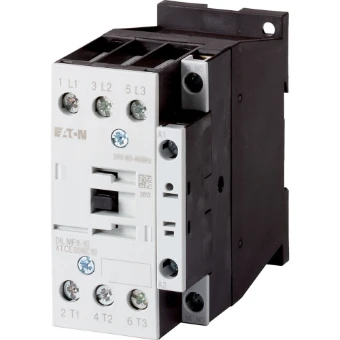

Magneetschakelaar DILMF8-10(RAC240) (190-240VAC 40/60Hz) 3kW, 1m, 0v

0187-5898
|
104413

0 piece in stock

Don’t have an account? Request account

Over 6.000 products in stock
Order before 17:00 and receive your order the next working day!
Need help? Call --- --- or contact us via email at [email protected]

General information

Magneetschakelaar DILMF8-10(RAC240) (190-240VAC 40/60Hz) 3kW, 1m, 0v Magneetschakelaar DILMF8-10(RAC240) (190-240VAC 40/60Hz) 3kW, 1m, 0v

Ordercode YESSS

0187-5898

Product code

104413

EAN code

04015081042302

Product group

Power contactor, AC switching

Brand

Eaton

Serie

DILM

Type

DILMF8-10(RAC240)

Product description

Magneetschakelaar, toepassing: Magneetschakelaars voor de semiconductor-industrie volgens SEMI F47, Magneetschakelaars tot 150A met elektronische bediening, Gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: schroefklemmen, Opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3. IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking. Beschrijving: Magneetschakelaars geschikt voor de halfgeleiderindustrie volgens SEMI F47., Magneetschakelaars bromvrij

Product specifications

Rated control supply voltage AC 50 Hz

190 - 240 V

Rated control supply voltage AC 60 Hz

190 - 240 V

Voltage type for actuating

Rated operation current Ie at AC-1, 400 V

20 A

Rated operation current Ie at AC-3, 400 V

7 A

Rated operation power at AC-3, 400 V

3 kW

Rated operation current Ie at AC-4, 400 V

5 A

Rated operation power at AC-4, 400 V

2.2 kW

Rated operation power NEMA

7.4 kW

Suitable for distribution board

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Type of electrical connection of main circuit

Screw connection

Number of normally closed contacts as main contact

Number of normally open contacts as main contact

Operating voltage AC 50 Hz

230 - 690 V

Operating voltage AC 60 Hz

230 - 690 V

Width

45 mm

Height

85 mm

Depth

97 mm
