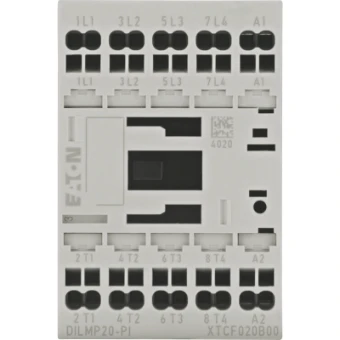

Magneetschakelaar DILMP20(230V50HZ,240V60HZ) 22A, 1m 1v, AC1, 4-polig,
Add to selection
General information
Ordercode YESSS
3085-4508
Product code
199259
EAN code
04015081973439
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILMP20(230V50HZ,240V60HZ)-PI
Magneetschakelaar DILMP20(230V50HZ,240V60HZ) 22A, 1m 1v, AC1, 4-polig,
Magneetschakelaar DILMP20(230V50HZ,240V60HZ) 22A, 1m 1v, AC1, 4-polig,
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor 4-polige elektrische verbruikers, Magneetschakelaars tot 200 A, 4-polig, Gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, Aansluittechniek: Push-in-klemmen, Aantal polen: 4 polen, 380 V 400 V: Ie= 12 A, Conventionele vrije lucht thermische stroom, 3-polig, 50 - 60 Hz open bij 40 °C: Ith = Ie = 22 A, in behuizing: Ith= 18 A, Conventionele vrije lucht thermische stroom, 1-polig open: Ith= 60 A, in kast: Ith= 54 A, 220 V 230 V: P= 3,5 kW, 380 V 400 V: P= 5,5 kW, 660 V 690 V: P= 6,5 kW
Product specifications
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
240 - 240 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
22 A
Rated operation current Ie at AC-3, 400 V
12 A
Rated operation power at AC-3, 400 V
5.5 kW
Rated operation current Ie at AC-4, 400 V
10 A
Rated operation power at AC-4, 400 V
4.5 kW
Rated operation power NEMA
0 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Spring clamp connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
4
Operating voltage AC 50 Hz
24 - 690 V
Operating voltage AC 60 Hz
24 - 690 V
Width
45 mm
Height
68 mm
Depth
75 mm
