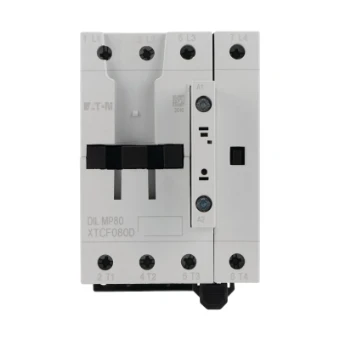

Magneetschakelaar DILMP80(RDC24) (24-27VDC) 80A, AC1, 4-polig, 0m, 0v
Add to selection
General information
Ordercode YESSS
0289-1170
Product code
109898
EAN code
04015081094646
Product group
Power contactor, AC switching
Brand
Eaton
Serie
DILM
Type
DILMP80(RDC24)
Magneetschakelaar DILMP80(RDC24) (24-27VDC) 80A, AC1, 4-polig, 0m, 0v
Magneetschakelaar DILMP80(RDC24) (24-27VDC) 80A, AC1, 4-polig, 0m, 0v
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Magneetschakelaars voor 4-polige elektrische verbruikers, magneetschakelaars tot 200 A, 4-polig, gebruikscategorie: AC-1: niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: Starten, uitschakelen tijdens bedrijf, aansluittechniek: Schroefklemmen, aantal polen: 4 polen, 380 V 400 V: Ie= 50 A, conventionele vrije lucht thermische stroom, 3-polig, 50 - 60 Hz open bij 40 °C: Ith =Ie= 80 A, in behuizing: Ith= 64 A, conventionele vrije lucht thermische stroom, 1-polig open: Ith= 207 A, in kast: Ith= 186 A, 220 V 230 V: P= 15,5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW
Product specifications
Rated control supply voltage AC 50 Hz
0 - 0 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Rated control supply voltage DC
24 - 27 V
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
80 A
Rated operation current Ie at AC-3, 400 V
50 A
Rated operation power at AC-3, 400 V
22 kW
Rated operation current Ie at AC-4, 400 V
40 A
Rated operation power at AC-4, 400 V
20 kW
Rated operation power NEMA
29.8 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
4
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Width
74 mm
Height
115 mm
Depth
132 mm
