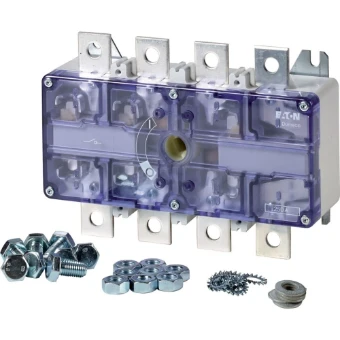

Switch disconnector (AC) Eaton
Add to selection
General information
Ordercode YESSS
2029-4599
Product code
1814410
EAN code
08711426104266
Product group
Switch disconnector (AC)
Brand
Eaton
Product specifications
Version as main switch
No
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
690 - 690 V
Rated permanent current Iu
250 A
Rated permanent current at AC-23, 400 V
250 A
Rated permanent current at AC-21, 400 V
250 A
Rated operation power at AC-3, 400 V
0 kW
Rated short-time withstand current lcw
12 kA
Rated operation power at AC-23, 400 V
140 kW
Switching power at 400 V
140 kW
Conditioned rated short-circuit current Iq
100 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Colour control element
Other
Type of control element
Other
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width
205 mm
Height
135 mm
Depth
63 mm
