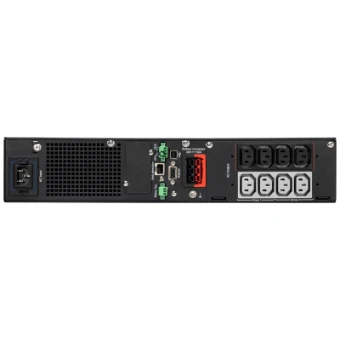

Eaton 5PX G2 UPS 1000VA/1000W R/T 2U : Line-Interactive :
Add to selection
General information
Ordercode YESSS
3074-7194
Product code
5PX1000IRT2UG2
EAN code
00743172104731
Product group
UPS
Brand
Eaton
Serie
Eaton 5PX
Type
Eaton 5PX 1000i RT2U G2
Eaton 5PX G2 UPS 1000VA/1000W R/T 2U : Line-Interactive :
Eaton 5PX G2 UPS 1000VA/1000W R/T 2U : Line-Interactive : Uitgang 8 x
STOCK
IN STOCK
0
piece
Product description
Eaton 5PX Gen2 UPS, 1000 VA, 1000 W, ingang: C14, uitgangen: (8) C13, rack/toren, 2U
Product specifications
Input voltage
150 - 294 V
Primary frequency
47 - 70 Hz
Number of phases primary
1
Output voltage
200 - 240 V
Secondary frequency
50 - 60 Hz
Output effective power
1000 W
Output apparent power
1000 VA
Number of phases secondary
1
SNMP
No
Voltage type
AC
Height
85.5 mm
Width
438 mm
Depth
448 mm
Bridging time full load
17 min
Weight
19.6 kg
Suitable for network-management
No
USV- technology
Line-interactive
Construction type
482.6 mm (19 inch) device
Max. voltage distortion output (linear load)
0 %
Output power factor
1
Overall efficiency
98 %
Efficiency in eco-mode
0 %
Potential free switch contact
Yes
Auto shut down function
Yes
Input connection
C14
Number of output connections C13
8
Number of output connections C19
0
Number of output connections fixed connection
0
USB interface
No
With communication interface RS-232
No
Modular
No
Power consumption
20 W
