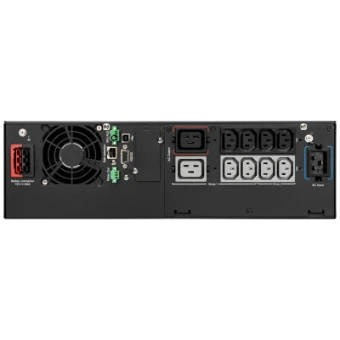

Eaton 5PX G2 UPS 2200VA/2200W R/T 3U : Line-Interactive :
Add to selection
General information
Ordercode YESSS
3074-7200
Product code
5PX2200IRT3UG2
EAN code
00743172104762
Product group
UPS
Brand
Eaton
Serie
Eaton 5PX
Type
Eaton 5PX 2200i RT3U G2
Eaton 5PX G2 UPS 2200VA/2200W R/T 3U : Line-Interactive :
Eaton 5PX G2 UPS 2200VA/2200W R/T 3U : Line-Interactive : Uitgang 8xC1
STOCK
IN STOCK
0
piece
Product description
Eaton 5PX Gen2 UPS, 2200 VA, 2200 W, ingang: C20, uitgangen: (8) C13, (2) C19, rack/toren, 3U
Product specifications
Input voltage
150 - 294 V
Primary frequency
47 - 70 Hz
Number of phases primary
1
Output voltage
200 - 240 V
Secondary frequency
50 - 60 Hz
Output effective power
2200 W
Output apparent power
2200 VA
Number of phases secondary
1
SNMP
No
Voltage type
AC
Height
129 mm
Width
438 mm
Depth
483 mm
Bridging time full load
10 min
Weight
27.5 kg
Suitable for network-management
No
USV- technology
Line-interactive
Construction type
482.6 mm (19 inch) device
Max. voltage distortion output (linear load)
0 %
Output power factor
1
Overall efficiency
98 %
Efficiency in eco-mode
0 %
Potential free switch contact
Yes
Auto shut down function
Yes
Input connection
C20
Number of output connections C13
8
Number of output connections C19
2
Number of output connections fixed connection
0
USB interface
No
With communication interface RS-232
No
Modular
No
Power consumption
45 W
Product information
