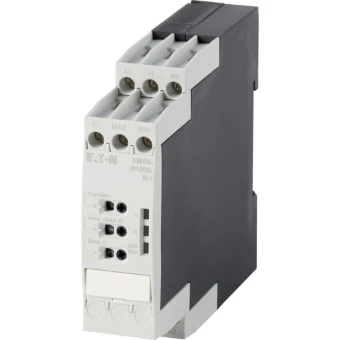

Niveaurelais, 0,1 - 1000 kΩ
Add to selection
General information
Ordercode YESSS
3017-9611
Product code
184756
EAN code
04015081787920
Product group
(Fill) level monitoring relay
Brand
Eaton
Serie
EMR
Type
EMR6-N1000-N-1
Niveaurelais, 0,1 - 1000 kΩ
Niveaurelais, 0,1 - 1000 kΩ
STOCK
IN STOCK
0
piece
Product description
Niveaubewakingsrelais, Productassortiment: EMR meet- en bewakingsrelais, Bewaking van: Vulniveau van geleidende vloeistoffen, Mengverhouding van geleidende vloeistoffen, aanpasbaar gevoeligheidsbereik: 0,1 - 1000 kΩ, Voedingsspanning: 110 - 130 V AC, 50/60 Hz, 220 - 240 V AC, 50/60 Hz, Montagepositie: zoals vereist, Bevestiging: Klikbevestiging, DIN-rail IEC/EN 60715, Breedte: 22,5 mm, Normen: IEC/EN 60255-6, EN 61557, UL, CSA, GL, DNV, RMRS, EAC, RCM
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Number of inputs for electrodes
3
Min. adjustable operate delay time
0 s
Max. permitted operate delay time
0 s
Min. adjustable off-delay time
0 s
Max. permitted off-delay time
0 s
Response value sensitivity adjustable
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Physical measurement principle
Conductive
Cascadable
No
Width
22.5 mm
Height
85.6 mm
Depth
103.7 mm
Voltage type (supply voltage)
AC
Supply voltage AC 50 Hz
110 - 240 V
Supply voltage AC 60 Hz
110 - 240 V
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
110 - 240 V
Operating voltage AC 60 Hz
110 - 240 V
Rated switch current
4 A
