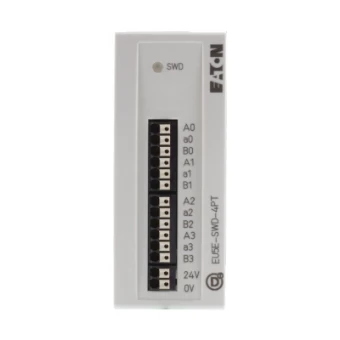

SmartWire temperatuurmodule 4 Temp. PT100/1000 -50°C..200°C, Ni1000 -5
Add to selection
General information
Ordercode YESSS
1283-2111
Product code
144064
EAN code
04015081405947
Product group
Fieldbus, decentr. periphery - analogue I/O module
Brand
Eaton
Serie
EU
Type
EU5E-SWD-4PT
SmartWire temperatuurmodule 4 Temp. PT100/1000 -50°C..200°C, Ni1000 -5
SmartWire temperatuurmodule 4 Temp. PT100/1000 -50°C..200°C, Ni1000 -5
STOCK
IN STOCK
0
piece
Product description
Eaton EU EU5E-SWD-4PT SmartWire temperatuurmodule 4 Temp. PT100/1000 -50°C..200°C, Ni1000 -50°C..150°C, 2/3-draad
Product specifications
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
0 - 0 V
Voltage type (supply voltage)
DC
Input, current
No
Input, voltage
No
Input, resistor
No
Input, resistance thermometer
Yes
Input, thermocouple
No
Input signal, configurable
No
Resolution of the analogue inputs
12 Bit
Output, current
No
Output, voltage
No
Output signal configurable
No
Resolution of the analogue outputs
0 Bit
Number of analogue inputs
4
Number of analogue outputs
0
Analogue inputs configurable
Yes
Analogue outputs configurable
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces USB
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Mobile communication standard GPRS
No
Mobile communication standard 2G (GSM)
No
Mobile communication standard 3G (UMTS)
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Type of electric connection
Flat plug-in connection
Fieldbus connection over separate bus coupler possible
Yes
Suitable for rail mounting
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
35 mm
Height
90 mm
Depth
102 mm
Power consumption
0.6 W
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
