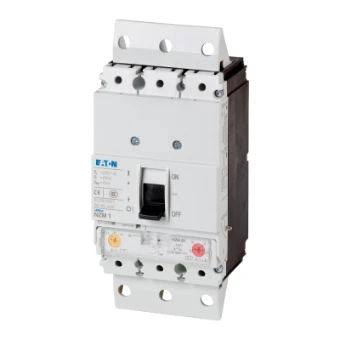

NZM1, 36kA, 3P, 125A, voor insteeksokkel, IEC
Add to selection
General information
Ordercode YESSS
0999-2596
Product code
112742
EAN code
04015081122820
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Eaton
Serie
MCCB's & Accessoires
Type
NZMC1-A125-SVE
NZM1, 36kA, 3P, 125A, voor insteeksokkel, IEC
NZM1, 36kA, 3P, 125A, voor insteeksokkel, IEC
STOCK
IN STOCK
0
piece
Product description
Vermogensautomaat NZM1, 3-polig, Schakelvermogen 400/415 V 50 Hz( Icu ): 36 kA, Nominale bedrijfsstroom = nominale ononderbroken stroom Nominale bedrijfsstroom = nominale ononderbroken stroom (ln = lu): 125 A, Installatietype: Plug-in-units, Raamklem, Standaard/goedkeuring: IEC, Beschermingsfunctie: Installatie- en kabelbeveiliging
Product specifications
Rated permanent current Iu
125 A
Rated voltage
690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36 kA
Overload release current setting
100 - 125 A
Adjustment range short-term delayed short-circuit release
0 - 0 A
Adjustment range undelayed short-circuit release
750 - 1250 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Frame clamp
Device construction
Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
No
Degree of protection (IP)
IP20
With integrated under voltage release
No
Power loss
26.7 W
