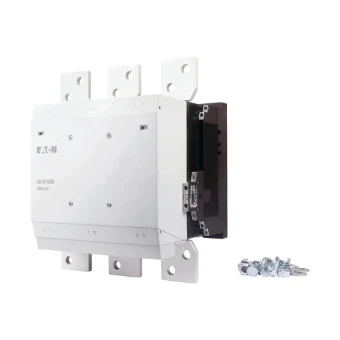

DILH1200/22(RAW250)
Add to selection
General information
Ordercode YESSS
3134-1539
Product code
151242
EAN code
04015081480326
Product group
Power contactor, AC switching
Brand
Eaton
Serie
Moeller series
Type
DILH1200/22(RAW250)
DILH1200/22(RAW250)
DILH1200/22(RAW250)
STOCK
IN STOCK
0
piece
Product description
Magneetschakelaar, toepassing: Netmagneetschakelaars voor resistieve belastingen vanaf 1000 A, AC-1 magneetschakelaars van meer dan 1000 A, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, aansluittechniek: Schroefaansluiting, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig, 50 - 60 Hz open bij 40 °C: Ith =Ie= 1450 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 1-polig open: Ith= 3000 A, voor gebruik met: DILM820-XHI…, instructies: geïntegreerd dempelement in aanstuurelektronica, 660 V, 690 V of 1000 V: niet direct omkeerbaar, spanning AC/DC: AC- en DC-bekrachtiging
Product specifications
Rated control supply voltage AC 50 Hz
230 - 250 V
Rated control supply voltage AC 60 Hz
230 - 250 V
Rated control supply voltage DC
230 - 350 V
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-3, 400 V
0 A
Rated operation power at AC-3, 400 V
0 kW
Rated operation current Ie at AC-4, 400 V
0 A
Rated operation power at AC-4, 400 V
0 kW
Rated operation power NEMA
0 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
230 - 250 V
Operating voltage AC 60 Hz
230 - 250 V
Width
260 mm
Height
342 mm
Depth
232 mm
